1. To access the Registry, select the Registry option in the blue shaded area below the iWay Service Manager banner, as shown in the following image.



2. Under Components in the left pane of the Registry, select Ebix.



   The Ebix pane opens, as shown in the following image.



3. Click Add to add a new Ebix. The New Ebix pane opens.



4. Browse to the directory in which the Ebix is located and select the name of the file, for example, SWIFT_2009.ebx.
5. Once you have selected the Ebix, click Next.

   You are prompted for the name of the Ebix and an optional description.



6. Enter a name for the Ebix, for example, SWIFT_2009, and an optional description, for example, SWIFT 2009 Ebix.

   Note: This step must be repeated for each SWIFT document that is added to the Registry.

7. Click Finish.

   On the Ebix pane, you will see that the Ebix was successfully added. Later you will associate it with the channel for inbound processing.

Depending on your system configuration, there are two methods that you can use to add an Ebix to the Registry on UNIX and z/OS.

• If you have a Web browser on the UNIX machine, follow the instructions for Windows.
• Use FTP to download the Ebix from the iWay60/etc/manager/packages directory to your Windows machine and follow the instructions for Windows.

1. From the Registry menu options, select Listeners.
2. On the Listeners pane, click Add to add a new listener.
3. For the purpose of this example, we will show the configuration with a File listener. For details on supported protocols, see the iWay Service Manager Protocol Guide.

   Select File from the Type drop-down list and click Next.

   The configuration parameters pane opens.

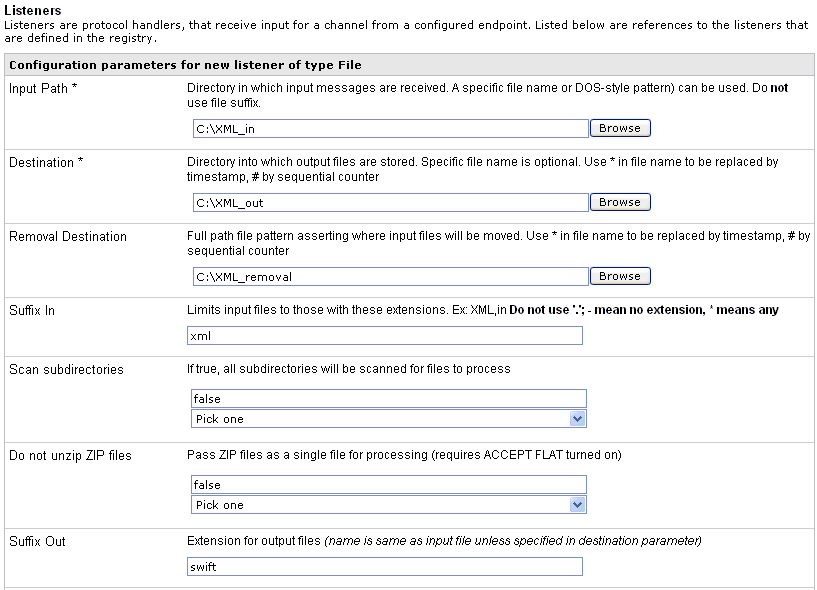

4. Supply configuration parameters for the new File listener as follows. An asterisk indicates that a parameter is required. For parameters not listed in the following table, accept the default value.

   Parameter	Value
   Input Path *	C:\XML_in This value is the directory in which input messages are received. Make sure that you have created this directory; otherwise, errors will occur during deployment.
   Destination *	C:\XML_out This value is the directory in which output files are stored after transformation. Make sure that you have created this directory; otherwise, errors will occur during deployment.
   Removal Destination	C:\XML_removal This value is the directory to which input messages are moved if they fail during transformation. Make sure that you have created this directory; otherwise, errors will occur during deployment. It is recommended to configure a removal destination when you are constructing a basic channel.
   Suffix In	xml Input files with the extension .xml are allowed.
   Suffix Out	swift In this example, the extension for output files is .swift.

5. Click Next.
6. On the Listeners pane, enter the name of the new listener and an optional description, as shown in the following table. Then click Finish to add the listener.

   Parameter	Value
   Name *	XMLtoSWIFT_Listener
   Description	File listener for XML input.

1. From the Registry menu options, select Inlets.
2. On the Inlet Definitions pane, click Add to add an inlet.
3. On the New Inlet Definition pane, enter the name of the new inlet and an optional description, as shown in the following table. Then click Finish to add the inlet.

   Parameter	Value
   Name *	XMLtoSWIFT_Inlet
   Description	Inlet for XML to SWIFT.

4. On the Construct Inlet pane, click Add to associate the listener with the inlet. The next pane prompts you for the component type.
5. Select Listener and click Next.

   The next pane prompts you to select a listener.

6. Select XMLtoSWIFT_Listener, which is the listener you added earlier for outbound processing, and click Finish.

   The listener is added to the inlet.

1. From the Windows Start menu select Programs, iWay 6.0 Service Manager, tools, and then iWay Designer.
2. Connect to the repository from which you want to work, for example, iWay.
3. Right-click the iWay node and select New Project from the drop-down list.

   The Designer Project Information dialog box opens, prompting you for a project name and optional description.

4. In the Name field, type XML_SWIFT_Process as the project name.

   In the Description field, type Defining a route for SWIFT outbound processing using iWay Designer to describe the project.

5. Click Next.

   The Designer Project Bindings dialog box opens.



6. To create the project in the iWay Registry, select iWay Registry and click Finish. The choice of project association depends on where you intend to publish (deploy) your process flow. If you are developing a process flow for use as part of a channel, you must publish it to the Registry for subsequent deployment.
7. The XML_SWIFT_Process project node appears under the repository in which it was created (in this example, it appears under iWay).
8. To save the project to the repository, right-click the project node and select Save from the drop-down list.
9. Expand the XML_SWIFT_Process project node to expose the project elements (Processes, Services, Transforms, and so on).
10. Right-click the Processes folder and select New Process from the drop-down list.

    The iWay Process Configuration dialog box opens.

11. In the Name field, type XML_SWIFT_Validation_process as the process flow name.

    In the Description field, type Process flow for SWIFT Route outbound channel processing.

12. Click Finish.

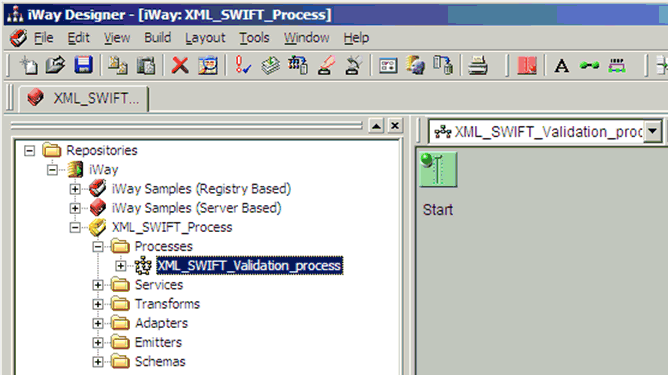

    The new XML_SWIFT_Validation_process node appears under the Processes folder, and the workspace displays a Start object.

You are ready to build the XML_SWIFT_Validation_process by adding objects to it and specifying their relationships.

The SWIFT XML Transform service object transforms SWIFT XML to SWIFT messages.

1. Drag and drop the Service object from the toolbar to the workspace.

   The Service Name and Description dialog box opens.

2. In the Name field, type SWIFTXML_Transform, and enter Transform SWIFT XML to SWIFT in the Description field.
3. Click Next.

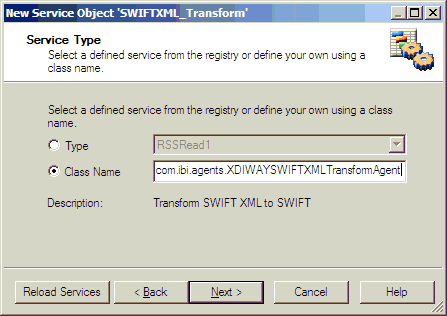

   The Service Type dialog box opens.



4. Select Class Name and enter com.ibi.agents.XDIWAYSWIFTXMLTransformAgent.
5. Click Next.

   The Define Service dialog box opens.

   Do not select the check box, since you do not want to use this service in other process flows.

6. Click Next.

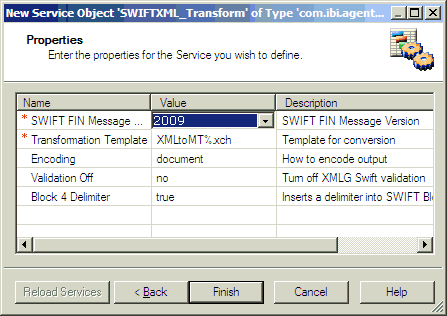

   The Properties dialog box opens.



7. Select 2009 from the SWIFT FIN Message drop-down list.
8. In the Transformation Template field, specify the template being used. For example:

   XMLtoMT%.xch

9. Accept the remaining default values.
10. Click Finish to accept the default values and close the dialog box.

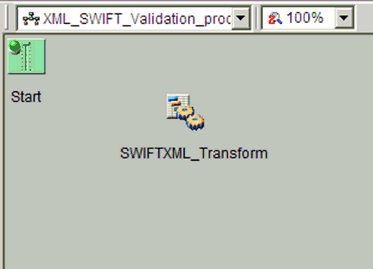

    The new SWIFTXML_Transform object appears in the workspace.

    Now you need to connect the Start object to the SWIFTXML_Transform object.

11. Select the Start object, right-click the SWIFTXML_Transform object, and select Relation from the drop-down list.

    The Line Configuration dialog box opens.

12. From the Event drop-down list, select OnCompletion and click OK.

    This option indicates that there are no conditions that affect the path, and that the path between the two objects will always be followed.

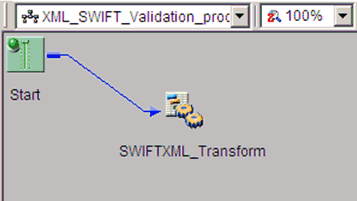

    A line appears between the objects to indicate that a relationship has been established.

The following procedure describes how to add a Set object, which is used to indicate the completion of the SWIFT to XML transformation process.

1. Drag and drop the Set object from the toolbar to the workspace.

   The Set Name and Description dialog box opens.

2. Accept the default name and description.
3. Click Next.

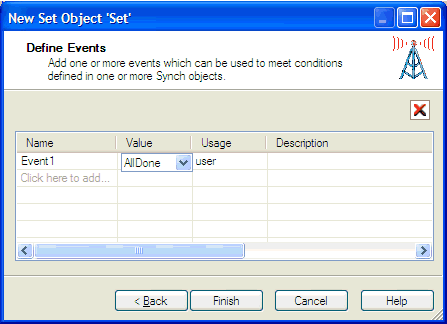

   The Define Events dialog box opens.



4. Add a new event row and type All Done in the Value column.
5. Click Finish.

   The Set object is added to the workspace area, as shown in the following image.



6. Select the SWIFTXML_Transform object, right-click the Set object, and select Relation from the drop-down list.

   The Line Configuration dialog box opens.

7. From the Event drop-down list, select OnCompletion and click OK.

   This option indicates that there are no conditions that affect the path, and that the path between the two objects will always be followed.

   A line appears between the objects to indicate that a relationship has been established.

The following procedure describes how to add a Synch object, which is used to indicate the start of the outbound validation report process. The Synch object waits until the Set Object returns the AllDone status.

1. Drag and drop the Synch object from the toolbar to the workspace.

   The Synch Name and Description dialog box opens.

2. Accept the default name and description.
3. Click Next.

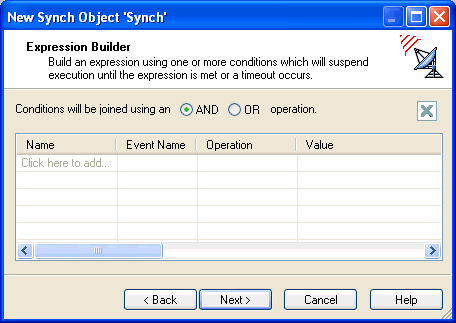

   The Expression Builder dialog box opens.



4. Click Next.

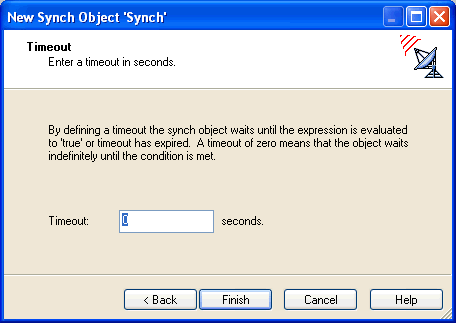

   The Timeout dialog box opens.



5. Click Finish.

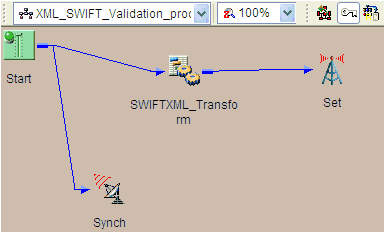

   The Synch object is added to the workspace area.

6. Double-click the Synch object.

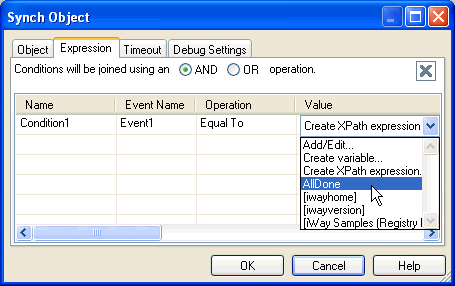

   The Synch object dialog box opens.



7. Click the first row under the Name column.
8. In the Value column, select AllDone from the drop-down list.
9. Click OK.



10. Select the Start object, right-click the Synch object, and select Relation from the drop-down list.

    The Line Configuration dialog box opens.

11. From the Event drop-down list, select OnCompletion and click OK.

    This option indicates that there are no conditions that affect the path, and that the path between the two objects will always be followed.

    A line appears between the objects to indicate that a relationship has been established.

You will add a Validation Report service to execute a SWIFT validation report.

1. Drag and drop the Service object from the toolbar to the workspace.

   The Service Name and Description dialog box opens.

2. In the Name field, type SWIFT_Outbound_Validation_Report, and enter Outbound Validation Report SWIFTOutReportAgent in the Description field.
3. Click Next.

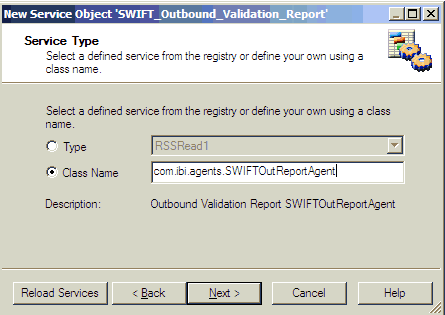

   The Service Type dialog box opens.



4. Select Class Name and enter com.ibi.agents.SWIFTOutReportAgent.
5. Click Next.

   The Define Service dialog box opens.

   Do not select the check box, since you do not want to use this service in other process flows.

6. Click Next.

   The Properties dialog box opens.

7. Click Finish to accept the default values and close the dialog box.

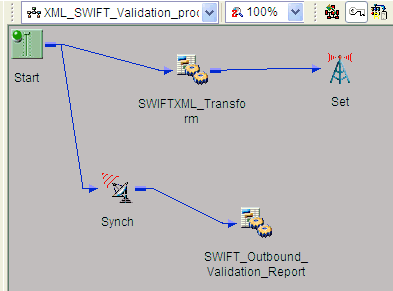

   The new SWIFT_Outbound_Validation_Report object appears in the workspace.

8. Select the Synch object, right-click the SWIFT_Outbound_Validation_Report object, and select Relation from the drop-down list.

   The Line Configuration dialog box opens.

9. From the Event drop-down list, select OnCompletion and click OK.

   A line appears between the objects to indicate that a relationship has been established. The process flow will look similar to the following.



All processing paths must terminate with an End object.

1. Drag and drop the End object from the toolbar to the workspace.

   The End Name and Description dialog box opens.

2. In the Name field, type End, and leave the default value (End object) in the Description field.
3. Click Next.

   The End Name Schema dialog box opens.

4. Since no schemas are used in this processing path (that is, the process flow will not be exposed as a Web service), from the Schema drop-down list, select None.
5. Click Next.

   The Properties dialog box opens.

6. Click Finish to accept the default values and close the dialog box.

   The new End object appears in the workspace.

7. Select the SWIFT_Outbound_Validation_Report object, right-click the End object, and select Relation from the drop-down list.

   The Line Configuration dialog box opens.

8. From the Event drop-down list, select OnCompletion and click OK.

   This option indicates that there are no conditions that affect the path and that the path between the two objects will always be followed.

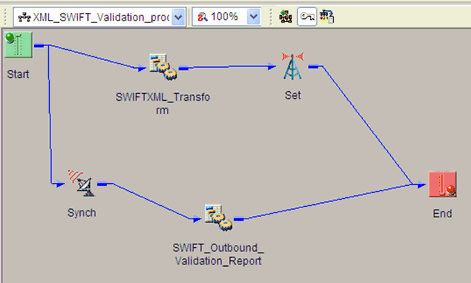

   You can reposition the objects as desired.

9. Select the Set object, right-click the End object, and select Relation from the drop-down list.

   The Line Configuration dialog box opens.

10. From the Event drop-down list, select OnCompletion and click OK.

    This option indicates that there are no conditions that affect the path and that the path between the two objects will always be followed. This relationship will redirect the output document to its destination.



    A line appears between the objects to indicate that a relationship has been established.

11. Now you need to validate the process flow and publish it to the Registry of the iWay Service Manager Administration Console for use in the route in the channel for inbound processing.

    Validating a process flow ensures that its structure is correct. Publishing a process flow makes it available in the Registry for use in channel configuration.

    For instructions on validating and publishing the process flow, see the iWay Designer User’s Guide.

12. Close iWay Designer.

1. From the Registry menu options in the iWay Service Manager Administration Console, click Routes.
2. On the Route Definitions pane, click Add to add a route.
3. On the New Route Definition pane, enter a name for the route and an optional description, as shown in the following table. Then click Finish.

   Parameter	Value
   Name *	XMLtoSWIFT_Route_PFlow
   Description	Route for SWIFT XML to SWIFT using process flow.

4. On the Construct Route pane, click Add.

   You are prompted for the type of component to associate with the route.

5. Select Process and click Next.

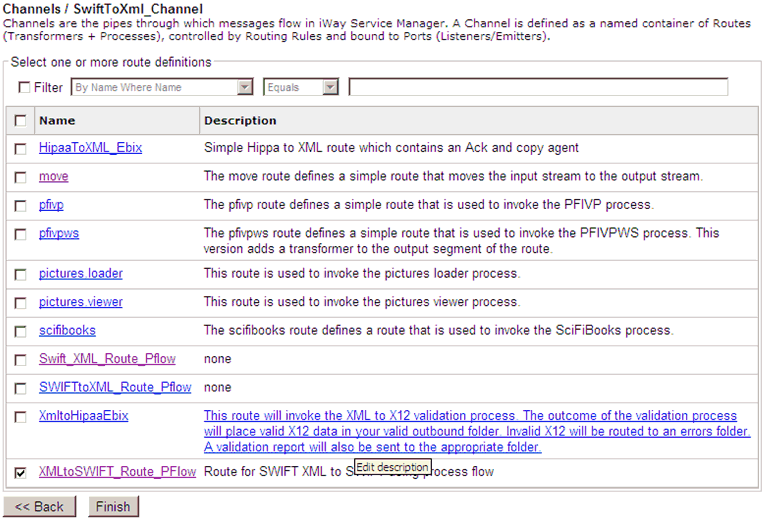

6. The next pane prompts you to select a process. Select the process flow you created earlier with iWay Designer, XML_SWIFT_Validation_process, and click Finish.

   The route, with its associated process flow, has been successfully defined.

1. From the Registry menu options, select Emitters.
2. On the Emitters pane, click Add to add an emitter. The next pane prompts you for the emitter type.
3. For this example, select File from the drop-down list and click Next.

   The configuration parameters pane opens.

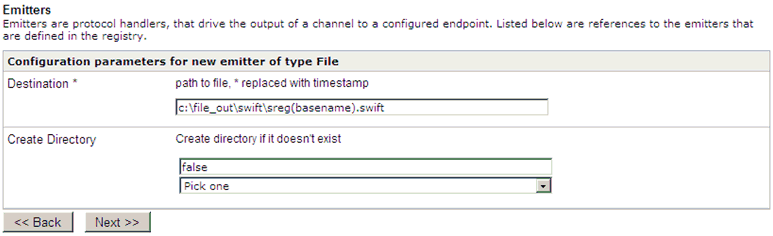

4. Supply configuration parameters for the new File emitter as follows, then click Next.

   Parameter	Value
   Destination *	C:\File_out\SWIFT\_SREG(basename)_*.swift This value is the directory to which the SWIFT output goes. Make sure that you have created this directory; otherwise, errors will occur during deployment. SREG(basename) is a special register reserved by iWay Service Manager, which uses a file name without an extension. For more information on how to configure a special register (SREG), see the iWay Service Manager User's Guide. On output, an asterisk (*) in the destination file name is replaced by a date and time stamp.
   Create Directory	false

5. On the Emitters pane, enter the name of the new emitter and an optional description, as shown in the following table. Then click Finish to add the emitter.

   Parameter	Value
   Name *	SWIFT_Out_Emitter
   Description	Emitter for SWIFT output.

1. On the Emitters pane, click Add to add another emitter. The next pane prompts you for the emitter type.
2. For this example, select File from the drop-down list and click Next.

   The configuration parameters pane opens.



3. Supply configuration parameters for the second File emitter as follows, then click Next.

   Parameter	Value
   Destination *	C:\File_out\Report\_SREG(basename)_*.xml This value is the directory to which the report validation output goes. You can use an extension other than .xml, for example, .SWIFT or .data. Make sure that you have created this directory; otherwise, errors will occur during deployment. On output, an asterisk (*) in the destination file name is replaced by a date and time stamp. For details on the special register (SREG) used in the preceding file name, see the iWay Service Manager User's Guide.
   Create Directory	false

4. On the Emitters pane, enter the name of the new emitter and an optional description, as shown in the following table. Then click Finish to add the emitter.

   Parameter	Value
   Name *	Validation_Report_Emitter_Outbound
   Description	Emitter for Validation Report output for SWIFT.

Now that you have added a SWIFT and Validation Report emitter to the Registry, you are ready to add and define the outlets. You will associate the previously created emitters with the outlets (one emitter for each outlet).

1. From the Registry menu options, select Outlets.
2. On the Outlet Definitions pane, click Add to add an outlet.

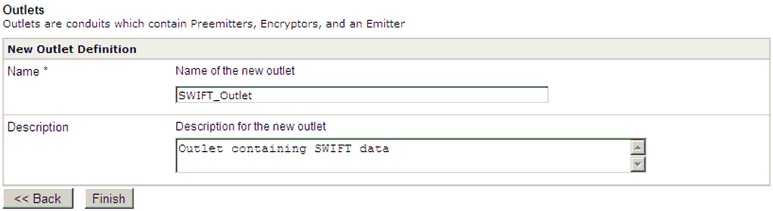

3. On the New Outlet Definition pane, enter the name of the new outlet and an optional description, as shown in the following table. Then click Finish to add the outlet.

   Parameter	Value
   Name *	SWIFT_Outlet
   Description	Outlet containing SWIFT data.

4. On the Construct Outlet pane, click Add to associate the SWIFT emitter with the SWIFT outlet.

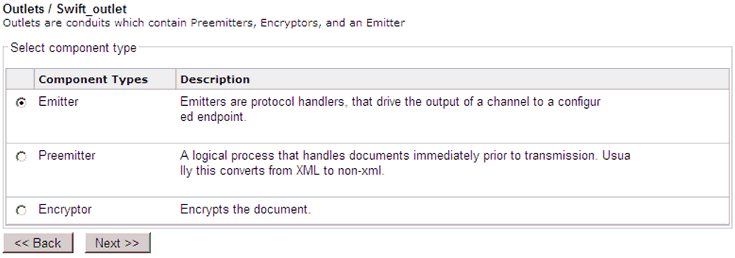

   The next pane prompts you for the component type.



5. Select Emitter and click Next.

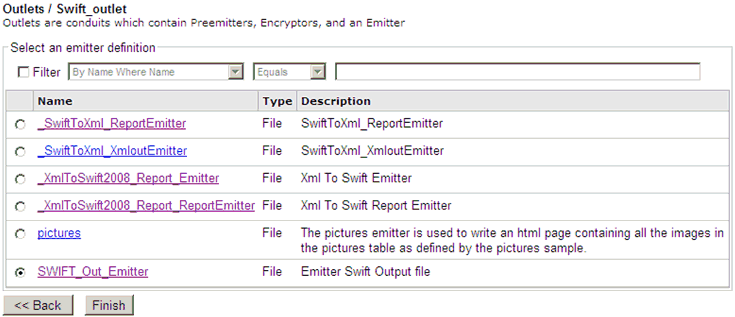

   The next pane prompts you to select an emitter.



6. Select SWIFT_Out_Emitter, which is the SWIFT emitter you added earlier, and click Finish.

   The SWIFT emitter is associated with the outlet. Now you need to define the second outlet for the validation report output.

1. From the Registry menu options, select Outlets.
2. On the Outlet Definitions pane, click Add to add an outlet.

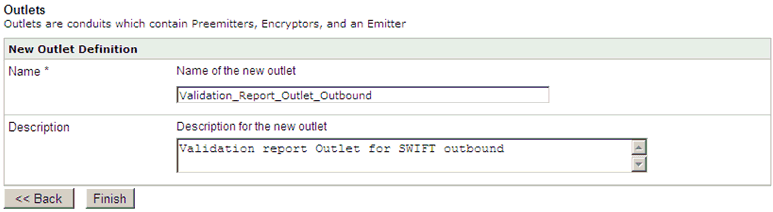

3. On the New Outlet Definition pane, enter the name of the new outlet and an optional description, as shown in the following table. Then click Finish to add the outlet.

   Parameter	Value
   Name *	Validation_Report_Outlet_Outbound
   Description	Validation report Outlet for SWIFT outbound

4. On the Construct Outlet pane, click Add to associate the validation report emitter with the validation report outlet.

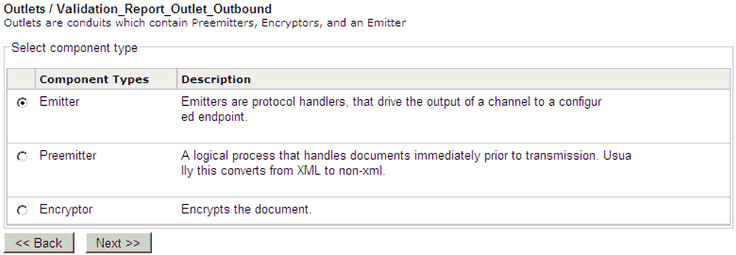

   The next pane prompts you for the component type.



5. Select Emitter and click Next.

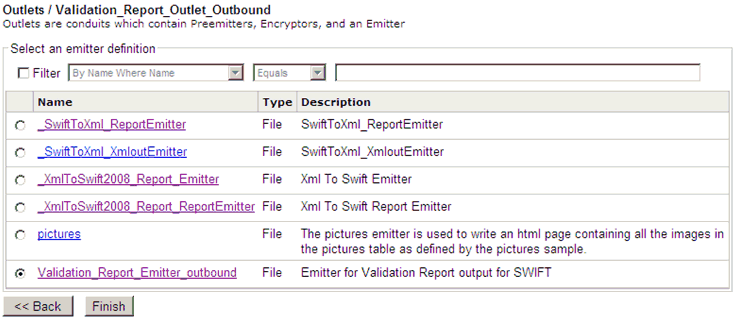

   The next pane prompts you to select an emitter.



6. Select Validation_Report_Emitter_outbound, which is the validation report emitter you added earlier, and click Finish.

   Now you have defined the two outlets.

1. From the Registry menu options, select Channels.
2. On the Channel Definitions pane, click Add to add a channel.
3. On the New Channel Definition pane, enter the name of the new channel and an optional description, as shown in the following table. Then click Finish to add the channel.

   Parameter	Value
   Name *	XMLtoSWIFT_Channel
   Description	Channel for XML to SWIFT outbound processing.

4. On the Construct Channel pane, click Add to associate the inlet, route, and outlet with the channel.

   You are prompted to associate components with the channel.

5. Select Inlet and click Next. The next pane prompts you to select an inlet.
6. Select XMLtoSWIFT_Inlet, which you defined earlier, and click Finish.

   The inlet is associated with the channel. Now you need to associate a predefined route with the channel and set it to the default.

7. On the Construct Channel pane, click Add.

   The next pane prompts you for the component type.

8. Select Route and click Next.

   On the next pane, you are prompted to select a route.



9. Select XMLtoSWIFT_Route_Pflow, which was created earlier and click Finish.

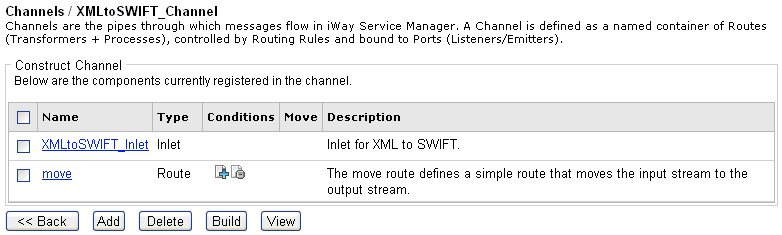

   The Construct Channel pane reopens.



10. Click the minus sign (-) under Conditions next to move to set this route as the default.



11. On the Construct Channel pane, click Add to add the next component.
12. When prompted for the component type, select Outlet and click Next.

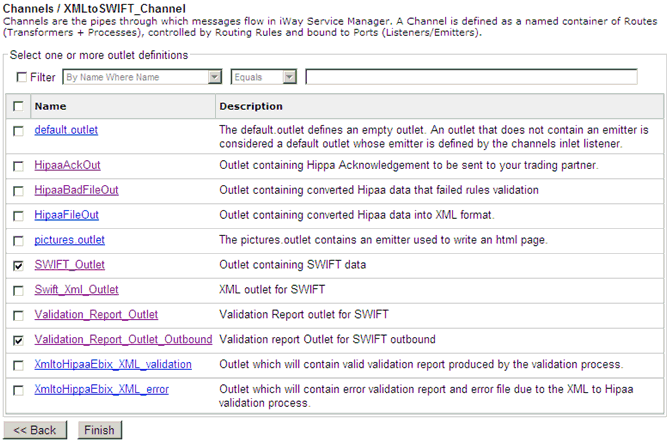

    A list of available outlets is displayed, as shown in the following image.



13. Select the two outlets that were defined earlier, SWIFT_Outlet and Validation_Report_Outlet.
14. Click Finish.

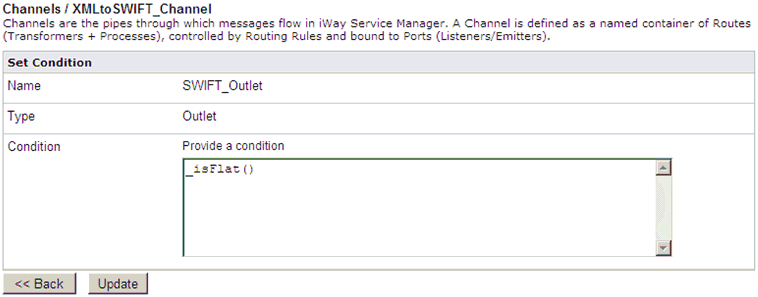

15. To set a condition for the SWIFT_Outlet, on the Construct Channel pane, click the plus sign (+) under Conditions for the SWIFT_Outlet.



    The Set Condition pane opens.



16. In the Condition input field enter _isFlat() and click Update.

    This condition tests the format of the data. Only flat formatted data will be written to this outlet.

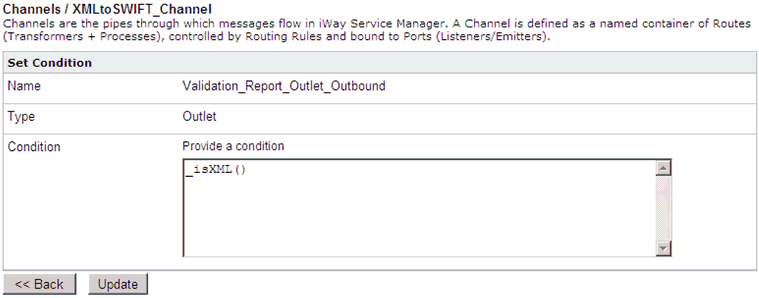

17. To set a condition for the Validation_Report_Outlet_Outbound, on the Construct Channel pane, click the plus sign (+) under Conditions for the Validation_Report_Outlet_Outbound.



    The Set Condition pane opens.



18. In the Condition input field enter _isXML() and click Update.

    This condition tests the output data for XML format.

1. From the Registry menu options, select Channels.

   The Channel Definitions pane opens.

2. Click the link in the Ebix column for the XMLtoSWIFT_Channel.
3. On the next pane, which prompts you to add Ebix components, click Add to add the Ebix to the channel.
4. On the next pane, select SWIFT_2009, which is the name of the Ebix you added previously, and click Finish.

   Note: Before you build your channel, verify that your Ebix and preemitter are configured to use the same SWIFT version.

1. From the Registry menu options, select Channels.
2. On the Channel Definitions pane, select the channel for outbound processing defined previously, XMLtoSWIFT_Channel, and click Build.

   The results of the build are displayed on the right pane.

3. Review the results of your build and then click Back.

   If an error or errors are displayed in the Message column, take the appropriate action as instructed.

Deployment is the mechanism by which a channel moves from being stored in the Registry to becoming active in iWay Service Manager. For more information on deployment, see the iWay Service Manager User's Guide.

1. Select the Deployments option.
2. On the Channel Management pane, click Deploy.
3. On the Available Channels pane, select the channel you defined previously, XMLtoSWIFT_Channel, and click Deploy.

   The Channel Management pane reopens.

4. Select XMLtoSWIFT_Channel and click Start.

   The red X under Status changes to a green check mark to indicate that the channel has been started. If an error or errors are displayed, take the appropriate action as instructed.

To make sure that the channel is working as expected, perform the following steps:

1. Place an XML file as test data into C:\XML_in. This is the path in which XML messages are received, which you specified for the listener associated with the inlet for the channel.

   The following table contains links to sample XML input files that are attached to this PDF and can be used for testing purposes.

   SWIFT MT950 2009	SWIFT MT535 2009	SWIFT MT541 2009
   . MT950.xml	. MT535.xml	. MT541.xml

2. Check for the SWIFT output file in the directory C:\XML_out. This is the destination directory you specified for the listener.

   The following table contains links to the SWIFT output files that are attached to this PDF and can be used to verify your output.

   SWIFT MT950 (Statement of Cash)	SWIFT MT535 (Statement of Holding)	SWIFT MT541 (Receive Against Payment)
   . MT950.txt	. MT535.txt	. MT541.txt

   Note: For file association compatibility only, each SWIFT output file that is attached to this PDF has been renamed to include a .txt extension. However, please note that the actual SWIFT output file that is placed in the C:\XML_out directory will not carry a .txt extension.

3. Confirm that the output has been converted to SWIFT format.
