Creating a Report Page Layout

In this section:



You can use the HTML Composer to create an HTML page that launches and displays your reports and graphs. You can add elements to the HTML page, such as reports, graphs, text, and form controls.

You can also set properties for the HTML page in the HTML Composer. For details, see Setting HTML Page Properties.


Top of page

x
Adding a Report, Graph, or Compound Document to the HTML Composer

How to:

Reference:

You can add reports and/or graphs to the HTML Composer that will display when you run the layout. You can add a new report (that you create in the Report Painter), a new graph (that you create in the Graph Assistant or Advanced Graph Assistant), or add an existing report or graph that resides on an available server. You can also launch Document Composer from HTML Composer and create compound documents.

You can also include parameters in a report and/or graph whose values can be assigned with controls that are added with the HTML Composer. For information, see Using Form Controls to Supply Incoming Parameter Values.

You can set the graphic used as a placeholder for a report or graph in the layout using the Settings dialog box. For details, see How to Set Page Properties.



x
Procedure: How to Add a New Report or Graph to an HTML Page
  1. Insert a report or graph object by doing one of the following:
    • Click the Report or Graph button from the Components toolbar.
    • From the Insert menu, select New Report or New Graph.
    • Right-click in the layout and select New Report or New Graph from the context menu.

    The cursor changes into a crosshair.

  2. Click and drag the crosshair to create a report or graph object and adjust it to the size you want.

    A report or graph object is created in the layout and assigned the name report(n) or graph(n), where n is a number. The object will appear in gray and white to indicate that the placeholder does not have a report or graph associated with it. Once a report or graph is associated with the object, the object displays the contents of the report or graph if live or simulated data is active (live data is the default) or a colored placeholder if preview is off in the Settings dialog.

  3. Create a report or graph by doing one of the following:
    • Double-click the placeholder.

      or

    • Right-click the placeholder and select New Report for a report, or New Graph for a graph.

    The Open dialog box opens.

  4. Select the Master File you want to report against from the Master File list, and click Open.

    The selected tool opens. For details on using these tools, see the Creating Reports With Report Painter manual and Creating a Graph With Graph Assistant in the Creating Charts With Graph Tools manual.

    Note: For a graph, the Graph Assistant opens. For a report, the Report Painter opens.

  5. Optionally, after creating the report or graph, you can change its properties by adjusting the properties displayed in the Properties tab of the Properties window. For details, see Report Properties in the Properties Window.


x
Procedure: How to Add an Existing Report or Graph to a Layout
  1. Insert a report or graph object by doing one of the following:
    • Click the Report or Graph button from the Components toolbar.

      The cursor changes into a crosshair. Click and drag the crosshair to create a report or graph object and adjust it to the size you want.

      A report or graph object is created in the layout and assigned the name report(n) or graph(n), where n is a number. The object will appear in gray and white to indicate that the placeholder does not have a report or graph associated with it. Once a report or graph is associated with the object, the object displays the contents of the report or graph if live or simulated data is active (live data is the default) or a colored placeholder if preview is off in the Settings dialog.

    • From the Insert menu, select Import Existing Procedure.

      Note: If you want to access the Manage Layout dialog box, choose this method.

    • Right-click in the layout and select New Report or New Graph from the context menu.
  2. Add a report or graph:
    • For a report, right-click the report object and select Import existing report.
    • For a graph, right-click the graph object and select Import existing graph.

    The Get source file dialog box opens.

  3. Enter the name of the procedure you want to add to the layout.
  4. Click Open.

    The report or graph object appears in the Design view of the HTML Composer.

  5. To edit the report or graph, double-click the object.

    The Procedure Viewer opens.

  6. Open the report or graph, and make any necessary changes.
  7. Close the Procedure Viewer to return to the HTML Composer.
  8. Optionally, change the properties by adjusting the properties displayed in the Properties tab of the Properties window. For details, see Report Properties in the Properties Window.


x
Reference: Report Properties in the Properties Window

When a report is selected, the Properties tab in the Properties window contains options that control the properties of your report and reporting objects.

Click a property to display a description of the selected property at the bottom of the Properties window.



x
Reference: Graph Properties in the Properties Window

When a graph is selected, the Properties tab in the Properties window contains options that control the properties of your graph.

Click a property to display a description of the selected property at the bottom of the Properties window.



x
Procedure: How to Add a Compound Document to an HTML Page
  1. Insert a report object by doing one of the following:
    • Click the Report button from the Components toolbar.
    • From the Insert menu, select New Report.
    • Right-click in the layout and select New Report from the context menu.

      The cursor changes into a crosshair.

  2. Click and drag the crosshair to create a report object and adjust it to the size you want.
  3. Right-click the report object and select Open document composer from the context menu.

    Document Composer opens. For details on using Document Composer, see the Creating Compound Reports With Document Composer manual.


Top of page

x
Selecting Components to Import Into a Procedure

How to:

Reference:

You can select to include or exclude components to be imported into your procedure with the Manage Layout dialog box. The Manage Layout dialog box allows you to select from components of your request such as TABLE, SET, and GRAPH.

If you have several requests in one procedure, you can use the Manage Layout dialog box to suppress the display of individual TABLE, SET, and GRAPH components (for example, temporary HOLD files). By default, the last TABLE is set to display.



x
Procedure: How to Select Components to Import Into a Procedure
  1. Select Import Existing Procedure from the Insert menu.

    The Get source file dialog box opens.

  2. Select a file name and click Open.

    The Manage Layout dialog box opens. For details, see Manage Layout Dialog Box.



x
Reference: Manage Layout Dialog Box

The following image is the Manage Layout dialog box.

The Manage Layout dialog box contains the following fields/options:

Components

Displays all the components (SET, DEFINE, and so on) in the request.

Data

Displays the contents of the selected component.

Component Legend

Determines whether the request is included in the procedure, outside of the procedure, or in the procedure and layout.

In focexec and layout

Activates the component and displays the component in the layout.

In focexec only

Deactivates the component and does not display the component in the layout. This is a good method for hiding report requests that produce temporary files.

Not in focexec

Removes the component from the procedure.

Show layout items only (reports and graphs)

Displays the layout reports and graphs in the Data field.

This check box only displays when you access the Manage Layout dialog box from the Insert menu. When accessing it from the context menu, only the report or graph component displays, and the check box does not apply.


Top of page

x
Adding a Frame to the Layout

How to:

Reference:

You can use a frame to embed additional Web sources or run reports. You can also use a frame as the output location or target for a drill-down report. You can also use a frame to run a table of contents report, an OLAP report, a PDF report, an Excel report, or a Maintain procedure.



x
Procedure: How to Add a Frame to the Layout
  1. Insert a frame by doing one of the following:
    • Click the Frame button.
    • From the Insert menu, select Components, then click Frame.

    The cursor changes into a crosshair.

  2. Click and drag the crosshair to create a frame and adjust it to the size you want.

    A frame is created in the layout and assigned the name iframen, where n is a number.

  3. Optionally, change the properties of the frame by adjusting the properties displayed in the Properties tab of the Properties window. For details, see Frame Properties in the Properties Window.


x
Procedure: How to Assign a URL, HTML File, or Report to a Frame
  1. Insert a frame by doing one of the following:
    • Click the Frame button.

      or

    • From the Insert menu, select Components, then click Frame.

    The cursor changes into a crosshair.

  2. Click and drag the crosshair to create a frame and adjust it to the size you want.

    A frame is created in the layout and assigned the name iframe(n), where n is a number.

  3. Right-click the frame, and select Frame Properties from the context menu.

    The Hyperlink Properties dialog box opens.

  4. Click the New button to create a new action. From the drop-down list in the Action field you can select:
    • URL. To assign a URL address to the frame, select URL and enter the fully-qualified URL in the Source field.
    • HTML File. To assign an HTML file to the frame, click select HTML File and enter the file location in the Source field, or click the browse (...) button to browse to the location. An HTML file refers to the HTML files in your application.
    • External Procedure. To assign an external procedure to the frame, select External Procedure and enter the procedure location in the Source field, or click the browse (...) button to browse to the location. You can also select Maintain procedures (.mnt, .fcm) here.
  5. Click OK.
  6. Optionally, change the properties of the frame by adjusting the properties displayed in the Properties tab of the Properties window. For details, see Frame Properties in the Properties Window.


x
Procedure: How to Show/Hide a Frame in the Layout
  1. From the HTML Composer, use form controls to supply parameter values for a report.

    Note: A report with parameters requires that you select values (at run time) in order to generate the output.

  2. Click the frame (report object) and select False from the Auto Execute drop-down list in the Properties tab of the Properties window.

    Note: False is the default Auto Execute option for reports with parameters.

  3. Right-click the frame (report object) in the Design view and select Style from the context menu.

    The Style Composer opens.

  4. Select Layout from the left side of the Style Composer to view the layout options for the selected frame.
  5. From the Flow control area, select Do not display from the Display drop-down list.

    This option hides the frame at run time until the values are selected.

  6. Click OK to close the Style Composer.
  7. Run the HTML page.

    In the example below, the frame is not shown before the values are selected.

    In the same example below, parameter values have been selected and the frame appears showing the output results.



x
Reference: Frame Properties in the Properties Window

When a frame is selected, the Properties tab in the Properties window contains options that control the properties of your frame.

Click a property to display a description of the selected property at the bottom of the Properties window.


Top of page

x
Adding a Line to the Layout

How to:

Reference:

You can add a horizontal or vertical line to the layout. This is useful for distinguishing between sections of your launch or display page.



x
Procedure: How to Add a Line to the Layout
  1. Do one of the following to add a line:
    • Click the Line button.

      or

    • From the Insert menu, select Components, then click Line.

    The cursor changes into a crosshair.

  2. Click and drag the crosshair to create a horizontal or vertical line.

    A line is created in the layout.

  3. Optionally, change the line properties by adjusting the properties displayed in the Properties tab of the Properties window. For details, see Line Properties in the Properties Window.


x
Reference: Line Properties in the Properties Window

When a line is selected, the Properties tab in the Properties window contains options that control the properties of lines.

Click a property to display a description of the selected property at the bottom of the Properties window.


Top of page

x
Adding an Image to the Layout

How to:

Reference:

You can add an image to the layout. This is useful for including graphics such as a company logo.

You can insert an image into your report layout and add a hyperlink to it. After you run your report and click the image you can launch a URL or run a report or Maintain procedure the same way you can by clicking a hyperlink or push button. For more information, see How to Add a Hyperlink to a Push Button or an Image.

Note: When inserting images, images must be referenced from a specific directory location. Links to images are not supported.



x
Procedure: How to Add an Image to a Layout
  1. Do one of the following to add an image:
    • Click the Image button from the Components toolbar.

      or

    • From the Insert menu, select Components, then click Image.

    The cursor changes into a crosshair.

  2. Click and drag the crosshair to create the image object and adjust it to the size you want.

    The Get source file dialog box opens.

  3. Navigate to the directory where the image is located using the Look in drop-down list, then select the image you want to add to the layout.

    Note: You can multiselect image files from the Get source files dialog box. The files will be cascaded on the canvas and can then be moved as required.

  4. Click Open.
  5. Optionally, change the properties of the image by adjusting the properties displayed in the Properties tab of the Properties window. For details, see Image Properties in the Properties Window.

    Note: You can always return an image to its original size by right-clicking the image and selecting Restore size from the context menu.

    Images will retain their aspect ratio if they are resized by clicking and dragging their corner borders.



x
Reference: Image Properties in the Properties Window

When an image is selected, the Properties tab in the Properties contains options that control the properties of images.

Click a property to display a description of the selected property at the bottom of the Properties window.


Top of page

x
Adding Flash Content to the Layout

How to:

You can add .SWF files that are Adobe® Flash Player compatible to accompany reports or graphs on an HTML page.

Note:



x
Procedure: How to Add Flash Content to a Layout
  1. Do one of the following to add an .SWF file that is Adobe Flash Player compatible:
    • Click the Insert Flash Content button from the Components toolbar.

      or

    • From the Insert menu, select Components, then click Flash Content.

    The cursor changes into a crosshair.

  2. Click and drag the crosshair to create the Flash content object and adjust it to the size you want.

    The Get source file dialog box opens.

  3. Navigate to the directory where the .SWF file is located using the Look in drop-down list, then select the .SWF file you want to add to the layout.
  4. Click Open.
  5. Optionally, change the properties of the Flash content by adjusting the properties displayed in the Properties tab of the Properties window.
  6. Click Run to view the flash content.


x
Reference: Flash Properties in the Properties Window

When Flash content is selected, the Properties tab in the Properties window contains options that control the properties of the Flash content.

Click a property to display a description of the selected property at the bottom of the Properties window.


Top of page

x
Adding Text to the Layout

How to:

Reference:

You can add text to the layout. This is useful for including headings for your Web page, or adding directions or explanation for your report or graph.



x
Procedure: How to Add Text to a Layout
  1. Insert text to the layout by doing one of the following:
    • Click the Text button from the Components toolbar.

      or

    • From the Insert menu, select Components, then click Text.

    The cursor changes into a crosshair.

  2. Click and drag the crosshair to create the text object and adjust it to the size you want.

    A text object is created in the layout and assigned the name textn, where n is a number.

  3. Replace the text with the text you want to appear in the layout.
  4. Optionally, change the text properties by adjusting the properties displayed in the Properties tab of the Properties window. For details, see Text Properties in the Properties Window.


x
Procedure: How to Format Text in the Layout

You may apply various formatting and style options to words and individual text characters within the text element. The formatting options are available from the Formatting toolbar in the HTML Composer.

Note: Any formatting and styling that you may have applied to individual text strings within the text element will remain unchanged. Changes made to the entire text element are only applied to part of the text string that has not been formatted.

  1. Insert a text element into the layout and type text in the text element.
  2. Select the text that you wish to format:
    • To format the entire text element, single-click the text object in the layout.
    • To format an individual word or text character, highlight part of the text within the text element.

    The Formatting toolbar is activated.

    Note: The Bold, Italic, Underline, Superscript, and Font Style options are available when formatting individual words or text characters. The Font Style and Alignment options are available when the entire text element is selected.

  3. Select from the formatting options available from the Formatting toolbar.
  4. Select Font Style from the Formatting toolbar to open the Font dialog box, from which you can change the type, style, color, size, and effect of the font.

    Tip: You may also access the Font Style dialog box from the Font ellipsis button of the Styling Font field in the Properties window.

  5. Click OK to close the Font dialog box.

The format options are applied to the text selected.



x
Reference: Text Properties in the Properties Window

When text is selected, the Properties tab in the Properties window contains options that control the properties of the text.

Click a property to display a description of the selected property at the bottom of the Properties window.


Top of page

x
Adding a Hyperlink to the Layout

How to:

You can create a hyperlink for your HTML page. A hyperlink can execute a report or Maintain procedure, link to a URL, or open an HTML page. You can create a hyperlink in two ways:



x
Procedure: How to Create a Hyperlink
  1. Do one of the following to create a hyperlink:
    • Click the Hyperlink button from the Components toolbar.

      or

    • From the Insert menu, select Components, then click Hyperlink.

    The cursor changes into a crosshair.

  2. Click and drag the crosshair to create a hyperlink object and adjust it to the size you want.

    The Hyperlink Properties dialog box opens.

  3. Enter the text you want to display as the hyperlink in the Display Text field.
  4. Set the action of the hyperlink:
    • To link to a URL, select URL in the Action section, and enter the URL in the Source field.
    • To open an HTML page, click select HTML in the Action section, and enter the HTML page in the Source field.
    • To execute an embedded procedure, select Embedded procedure and enter the procedure name in the Source field, or click the browse (...) button to browse to the procedure.
    • To execute an external procedure, select External procedure and enter the procedure name in the Source field, or click the browse (...) button to browse to the procedure. You can also select Maintain procedures (.mnt, .fcm) here.
    • To refresh or repopulate active reports based on selected values in active form controls, select Refresh active reports and specify the source or which active report(s) should be refreshed.

      For more information about active form controls, see Creating Active Technologies Dashboards With the HTML Composer.

  5. Optionally, direct the output to a specific location by selecting Window or Frame in the Target Type field.
  6. Specify a name for the target window or frame by selecting one of the default values from the Target/Template Name drop-down list or by typing the name of a new or existing window or frame in the Target/Template Name field.
  7. Click OK.

    Note: If linking hyperlink properties to another page or procedure, the HTML Composer parses the other file for unresolved parameters and opens the New Parameters dialog box.

  8. Execute the request and click the hyperlink to launch the source you entered in the Hyperlink Properties dialog box.


x
Procedure: How to Add a Hyperlink to a Push Button or an Image

To add a hyperlink to a push button or image, complete the following steps.

  1. Insert a push button or image from the Components toolbar and add it to the layout.
  2. Right-click the push button or image, and select Create hyperlink. The Hyperlink Properties dialog box opens.
  3. Click the New button to generate a new request and select URL from the Action drop-down list.
  4. Type a URL in the Source field.
  5. Optionally, in the Target Type field, direct the output to a specific location by selecting Window or Frame from the drop-down list.
  6. In the Target/Template Name field, specify a target window or frame by selecting one of the default values from the drop-down list or by typing the name of a new or existing window or frame.
  7. Click OK.

    Note: If linking hyperlink properties to another page or procedure, the HTML Composer parses the other file for unresolved parameters and opens the New Parameters dialog box.

  8. Execute the request and click the push button, or image, to launch the source you entered in the Hyperlink Properties dialog box.

Top of page

x
Adding a Group Box to the Layout

How to:

Reference:

A group box can be used to create a border around a group of objects, for example, forms or reports and graphs.



x
Procedure: How to Add a Group Box
  1. Insert a group box by doing one of the following:
    • Click the Group box button from the Components toolbar.

      or

    • From the Insert menu, select Controls, then click Group Box.

    The cursor changes into a crosshair.

  2. Click and drag the crosshair to create a group box and adjust it to the size you want.

    A group box is created in the layout and assigned the name groupbox(n), where n is a number.

  3. Optionally, you may change the default name of the group box and format the text, as shown in the image below.

    For more information about formatting text, see How to Format Text in the Layout.

  4. Optionally, change the group box properties by adjusting the properties displayed in the Properties tab of the Properties window. For details, see Group Box Properties in the Properties Window.


x
Reference: Group Box Properties in the Properties Window

When a group box is selected, the Properties tab in the Properties window contains options that control the properties of a group box.

Click a property to display a description of the selected property at the bottom of the Properties window.


Top of page

x
Adding a Push Button to the Layout

In this section:

How to:

Reference:

You can add a push button to the layout. A push button enables you to execute a report or Maintain procedure, or link to a URL or HTML file. This behavior is similar to a hyperlink.



x
Procedure: How to Create a Push Button in Place of a Submit Button
  1. If the submit button is deleted from the layout, a push button can be used to replace the button. Insert a push button by doing one of the following:
    • Click the Push Button from the Components toolbar.

      or

    • From the Insert menu, select Controls, then click Push Button.

    The cursor changes into a crosshair.

  2. Click and drag the crosshair to create a push button and adjust it to the size you want.

    A push button is created in the layout and assigned the name button(n), where n is a number.

  3. Assign an action to the push button by using the Hyperlink Properties dialog box. Right-click the push button and select Hyperlink properties from the context menu.

    The Hyperlink Properties dialog box opens. Use the Hyperlink Properties dialog box to assign a target and action to the push button.

  4. Click OK to close the Hyperlink Properties dialog box.
  5. Run the HTML page.
  6. Click the push button to submit your request.


x
Procedure: How to Run Multiple Reports With One Submit Button

The submit button on a form control enables you to submit your request after selecting parameter values at run time. You may run multiple reports with one submit button.

Note: A push button can also be used in place of a submit button.

  1. Right-click the submit button, or the frame for the whole control, and select Hyperlink properties from the context menu.

    The following image is an example of the submit button selected.

    The following image is an example of the whole control selected.

    The Hyperlink Properties dialog box opens.

  2. Click the New button and use the drop-down lists to add the second report request to be executed with the submit button.

Repeat these steps for multiple procedures.



x
Reference: Push Button Properties in the Properties Window

When a push button is selected, the Properties tab in the Properties window contains options that control the properties of your buttons.

Click a property to display a description of the selected property at the bottom of the Properties window.



x
Maintain From HTML Composer

The HTML Composer enables you to select Maintain procedures (.mnt, .fcm) to run from your HTML form, either within a frame or in a new window. Select a Maintain procedure as the source for the External procedure in the Hyperlink Properties dialog box. This makes it easy to create customized launch forms for WebFOCUS Maintain, and to integrate WebFOCUS reporting and Maintain in your applications. For details about inserting a frame, see How to Assign a URL, HTML File, or Report to a Frame.


Top of page

x
Adding a Reset Button to the Layout

How to:

Reference:

You can add a reset button to the layout. A reset button enables you to reset the form back to its initial settings.



x
Procedure: How to Create a Reset Button
  1. If the reset button is deleted from the layout, you may create a new reset button. Insert a reset button by doing one of the following:
    • Click the Reset button from the Components toolbar.

      or

    • From the Insert menu, select Controls, then click Reset Button.

    The cursor changes into a crosshair.

  2. Click and drag the crosshair to create a reset button and adjust it to the size you want.

    A reset button is created in the layout and assigned the name reset(n), where n is a number.

  3. Run the HTML page.
  4. When selecting criteria to submit a report, click the reset button to reset the form back to its initial settings.


x
Reference: Reset Button Properties in the Properties Window

When a Reset button is selected, the Properties tab in the Properties window contains options that control the properties of your buttons.

Click a property to display a description of the selected property at the bottom of the Properties window.


Top of page

x
Adding a Tab Control to the Layout

How to:

Reference:

You can add a tab control to the layout. Tab controls enable you to create multiple pages in one HTML form and present a better display for viewing secondary information.

When a tab control object is added to the layout, each tab control consists of:

The Tab control can be displayed as a full screen or part of an HTML page.

In the example below, the selected tab shows a report and a second tab that contains a graph.



x
Procedure: How to Create a Tab Control
  1. Insert a tab control to the layout by doing one of the following:
    • Click the Tab control button from the Components toolbar.

      or

    • From the Insert menu, select Components, then click Tab Control.

    The cursor changes into a crosshair.

  2. Click and drag the crosshair to create a tab control object and adjust it to the size you want.

    Tip: You should make the object large enough to associate report/graph components within the tab control.

    A tab control object is created in the layout and assigned the Properties name tab(n), where n is a number of the tab. By default, the tab control has one tab page. Each tab page consists of a tab item (tabitem(n)) and tab body (tabitembody(n)).

  3. Optionally, change the properties of the tab control by adjusting the properties displayed in the Properties tab of the Properties window.


x
Procedure: How to Enable Full Screen Mode for the Tab Control

You may resize the tab control to fit the full screen of your layout, making the tab control the full background of your browser window at run time. When set to full screen mode, scroll bars will not be applied to the output window. Therefore, you may have to adjust the tab control (and any items on the tab) in the layout to ensure that they appear appropriately for display at run time.

Note: It is recommended to set the tab control to full screen mode at the beginning of the development process. If there are existing components on the layout that are not part of the tab control, these components will become inaccessible if the tab control is changed to full screen mode.

  1. From the Insert menu, select Components, then click Tab Control.

    The cursor changes into a crosshair.

  2. Click and drag the crosshair in the layout to create the tab control object.
  3. Right-click the tab control and select Full screen mode from the context menu, as shown in the image below.

    The tab control displays as a full screen in the layout, as shown in the image below.

    Note: This setting can be applied only to one tab control in your application. If one tab control is set to full screen mode, the full screen mode item will be greyed out for any additional tab controls.

  4. To resize the tab control, right-click and uncheck the Full screen mode option, as shown in the image below.



x
Procedure: How to Add Additional Tabs
  1. Select the tab control object in the layout.

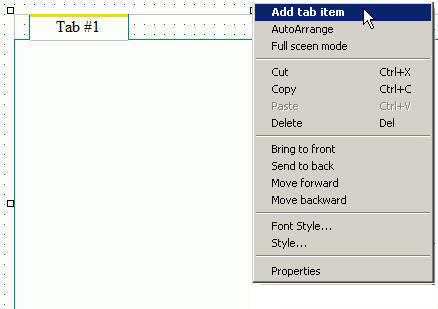

  2. Right-click and select Add tab item from the context menu.

    A tab is added to the tab control object.

  3. To align multiple tab items, select the tab control object and click AutoArrange from the context menu,

    The tab items are resized to the size of the widest tab item and they are evenly spaced.



x
Reference: Tab Control Properties in the Properties Window

When a tab control is selected, the Properties tab in the Properties window contains options that control the properties of your tabs.

Note: You may set options for the tab control, individual tab items, and the tab body.

Click a property to display a description of the selected property at the bottom of the Properties window.



x
Procedure: How to Modify and Style the Tabs

You may modify and style the tab item(s) and tab body properties.

  1. Use the Formatting toolbar to format the text in the tab item.

  2. Click the tab item/tab body and use the right-click context menu to edit the text (if applicable), Font Style, Style, and Properties.



x
Procedure: How to Modify the Size, Appearance, and Location of the Tabs

When the tab control is selected, you may change the default size of the tab labels, the appearance of the tabs, and the location of the tab items on the tab control.

These properties are available from the Properties tab of the Properties window when the tab control is selected. The tab control appears as tab(n) in the Properties window drop-down list.

  1. To change the default size of the tab labels, adjust the Tab: default distance, Tab: default height, and Tab: default width properties.
  2. To change the appearance of the tabs, select Straight or Round from the Tab: edges properties field.

    The default tab edge is Straight.

  3. To change the location of the tab items on the tab control, select Top, Bottom, Left, or Right from the Tab: location properties field.

    The default tab location is Top.

    Note: If the tab location is changed, any background images applied to the tabs will not be rotated. You will have to reinsert a different image that is rotated appropriately.



x
Procedure: How to Use the Tab Item Background Properties Field

In addition to using the Style Composer, you can add background images to tab items by using the Background properties field.

The Background properties field is available from the Properties tab of the Properties window when the tab item is selected. The tab item appears as tabitem(n) in the Properties window drop-down list.

  1. Select the tab item in the layout, or click the tabitem(n) property from the Properties window drop-down list.
  2. Click the Background ellipsis button from the tab item properties window.

    The Get source file dialog box opens, as shown in the image below.

  3. Select a File name and click Open.

    The background image is added to the tab item.

    You may have to manually resize the tab item to fit the image.

    Note: If the tab location is changed (from Top to Left for example), any background images applied to the tabs will not be rotated. You will have to reinsert a different image that is rotated appropriately.



x
Procedure: How to Add Background Images to Tabs

You may add background images to a tab item or tab body using the Style Composer. For example, you may add a small icon with text to a tab item or your company logo as the background image for a tab body.

Note: Background images can also be applied to tab items by using the Background properties setting. For more information, see How to Use the Tab Item Background Properties Field.

  1. Select Style from the right-click context menu of the tab item/tab body.

    The Style Composer dialog box appears.

  2. Select Background to show the Background image options.
  3. Select a source file in the Image field and adjust the Tiling, Scrolling, and Position options.

    Tip: If you are adding an icon to a tab item, select a small image and do not tile the image.

  4. If you are using text in addition to a background image for a tab item, select Text from the Style Composer to view and change the Alignment options.
  5. Click OK to close the Style Composer.

    The background image is added to the tab item/tab body.



x
Procedure: How to Associate Components to the Tab Body

You may associate any component from the Insert menu (such as an image or line) to the tab body. This procedure details how to add a report or graph object component to the tab body.

  1. To add a new report or graph object to the tab body:
    • Select New Report or New Graph from the Insert menu.

      The cursor changes into a crosshair.

    • In the tab control body, click and drag the crosshair to create the report/graph object and adjust it to the size you want.
    • Open, import, or reference a report or graph procedure.
  2. To associate an existing component in the layout to a tab body:
    • Select the component in the layout.
    • Press the Alt key and drag the component into the tab body.

    The component is associated to the tab body.


Top of page

x
Adding a Label to the Layout

How to:

Reference:

You can add a label to the layout. A label is simply a piece of text. The label component enables you to create and name a label, and link it to a control by assigning the label HTMLfor property the same value as the Unique Identifier property for the control.



x
Procedure: How to Add a Label
  1. Insert a label to the layout by doing one of the following:
    • Click the Insert Label button from the Components toolbar.

      or

    • From the Insert menu, select Components, then click Label.

    The cursor changes into a crosshair.

  2. Click and drag the crosshair to create the label and adjust it to the size you want.

    A label is created in the layout and assigned the name labeln, where n is a number.

  3. Replace the label text with the text you want to appear in the layout.
  4. Assign the label to an existing control in the layout by assigning the label properties:
    • Select the label in the layout.
    • Select the HTMLfor property field in the Properties tab of the Properties window.
    • Type in the Unique Identifier property name for the control you want to link the label to.

      For example, suppose you have a drop-down list in your layout. The default Unique Identifier property name assigned to the drop-down list object is combobox1. Enter combobox1 in the HTMLfor property field to link the label to the drop-down list in your layout.

    • Optionally, change the label properties by adjusting the properties displayed in the Properties tab of the Properties window. For details, see Label Properties in the Properties Window.


x
Reference: Label Properties in the Properties Window

When label is selected, the Properties tab in the Properties window contains options that control the properties of the label in your layout. New pages will show labels as <LABEL> tags in the Properties window.

Click a property to display a description of the selected property at the bottom of the Properties window.


Top of page

x
Working With the Properties Window

How to:

The Properties window is a dockable window that consists of several tabs and components.



x
Procedure: How to Dock the Properties Window

For layout purposes, you may want to dock or reposition the Properties window. You can dock the Properties window on all four sides of the HTML Composer. When you choose to dock the Properties window on the top or bottom, the columns are split in half.

  1. Click the Properties title bar on the Properties window.

    The Properties window appears as shown in the following image when you double-click the title bar.

  2. Click and drag the Properties window to the side of the screen that you prefer or it can float in the middle of the screen.
  3. Release the mouse when the Properties window is on the side of the screen that you prefer.

    If you selected to dock the Properties window on the bottom of the screen it will appear as shown in the following image.

    docking Properties sheet

    To undock the Properties window, click the Properties title bar and then move the window to the desired location in the layout.


WebFOCUS
