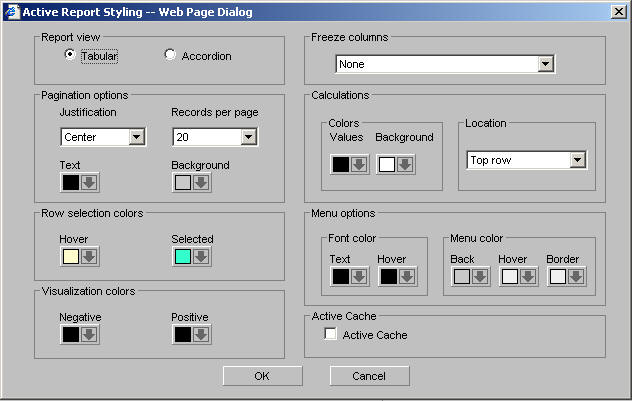

The
following are active report styling options.
-
Report view
-
You can set the report view as a standard table (Tabular)
or as an expandable report (Accordion). An expandable report is
a collapsed report that can be fully expanded for sorting and other
purposes.
If you are working with an Accordion active report,
the Freeze columns option and Pagination options are not available.
Accordion
Reports are not supported when creating HTML active reports using active
cache and active reports for Adobe Flash Player.
Accordion
Reports do not work when using By Hierarchy data.
-
Pagination options
-
You can set the justification for the information that appears
in the record status and page navigation bar. You can also set the
number of records that appear per page.
The following are
the pagination options for active reports.
-
Justification
-
Justifies the text that appears in the record status and
page navigation bar. Options are Left, Center, and Right. Left is
the default.
-
Records per page
-
Sets the number of records that appear per page. Options
are Default, 10, 20, 30, 40, 50, Show All. The default is 57 lines
per page.
-
Text
-
Sets the color for the text in the record status and page
navigation bar. The default is black.
-
Background
-
Sets the background color for the record status and page
navigation bar. The default color is silver.
Pagination
options are not available for expandable report (Accordion) views.
-
Row selection colors
-
An active report offers visual assistance for viewing data
in the report. For example, when a user hovers over a row of data,
the row is highlighted with a background color, and when they click
a row of data, it is also highlighted with a background color. You
can set the colors for these options, Hover and Selected. The default
color for Hover is RGB(255 252 204), which is a pale yellow, and
the default color for Selected is RGB(51 255 204), which is blue-green.
-
Visualization colors
-
Users can apply data visualization to numeric fields in an
active report. You can designate the colors of the bars. You can
set different colors for positive and negative values. The default
color for positive and negative values is black.
-
Freeze columns
-
You can freeze the report at a particular point so that columns
to the left of the freeze point remain in view while the user scrolls
through the other report columns. Options include:
- None, which
turns off the freeze option. This is the default value.
- The fields
in the request. If the report can be fully viewed in the browser window,
freeze is not applied.
The Freeze columns option is
not available for expandable report (Accordion) views.
-

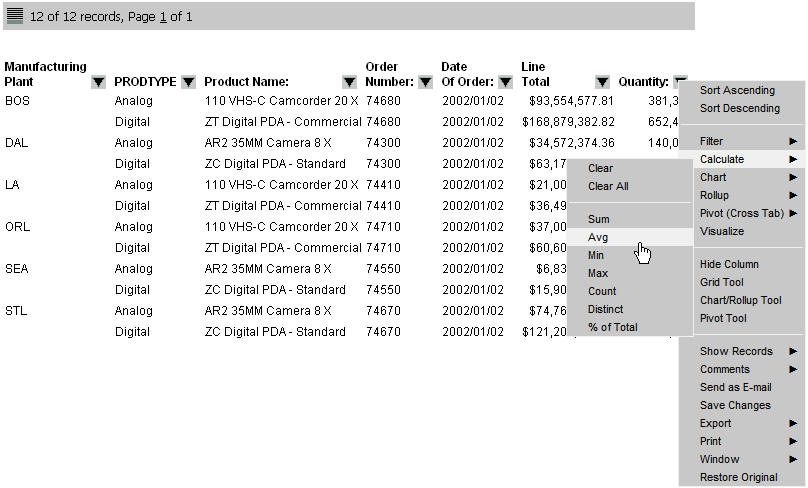

Calculations
-
Sets options for calculations.
-
Colors
-
Specifies the colors for the values in a calculation.
- Values sets the font
color of the calculation results. The default color is black.
- Background sets the
background color of the calculation results. The default color is
white.
-
Location
-
Sets the location of the calculations. Options are Top row
or Bottom row. Top row is the default.
-
Menu options
-
Set options for the menu.
-
Font color
-
Enables you to set the colors for the menu text.
- Text sets the color
of the text. The default color is black.
- Hover sets the color
of the text when the mouse hovers over it. The default color is
black (text hover does not show).
-
Menu color
-
Set the colors for the menu.
- Background sets the
background color of the menu. The default color is silver.
- Hover sets the background
hover color of an individual item on the menu. For example, if the
background color of the menu is black, the hover color can be set to
white to visually show which option on the menu the mouse is currently
hovering over. The default color is white.
- Border sets the color
of the menu border. The default color is white.
-
Active Cache
-
Select this option to enable active cache.
Because
all post-retrieval processing is performed in the memory of the
Web browser, an active report has a processing limit of approximately
5,000 records or 100 pages of output. The active cache option enables
you to send only the first page of active report output to the browser
and retrieve subsequent pages from a temporary cache on the WebFOCUS Reporting Server. The server also becomes the resource
for performing all calculations, sorting, and filtering when active
cache is enabled. Since active cache uses on-demand paging functionality, WebFOCUS
Viewer is not supported.
In Report Assistant, the active cache
option is not applicable to active reports for Adobe Flash Player.
