Numeric fields containing dates are recognized by the field formats specified in the Master File. Such fields can be used in ACROSS or BY phrases in GRAPH requests. To review the various format types, refer to the Describing Data With WebFOCUS Language manual.
Plotted dates are handled in the following manner:
You can selectively combine groups of date point plots to reduce the number of separate points on the horizontal axis. You do this with the IN-GROUPS-OF option. For example, if the date field format is I6YMD, you can display the data by month rather than by day by grouping it in 30-day increments:
ACROSS DATE IN-GROUPS-OF 30
This eliminates plot points for individual days. If your date format is YMD, you can redefine the format and divide the field contents by 100 to eliminate the days:
DATE/I4YM=DATE/100
The following example illustrates how month-first formatted date fields are displayed in a graph.
SET GRMERGE = ON GRAPH FILE GGORDER SUM QUANTITY ACROSS ORDER_DATE BY PRODUCT_DESC WHERE PRODUCT_DESC EQ 'French Roast' OR 'Hazelnut' OR 'Kona' AND ORDER_DATE GE '010197' END

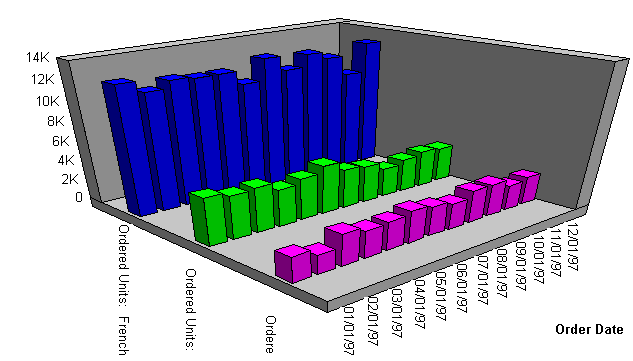

The output is:
