Syntax: How to Link to a JavaScript Function
TYPE=type, [subtype], JAVASCRIPT=function[(parameters ...)], $
where:
- type
- Identifies the report component that you select in the Web
browser to execute the link. The TYPE attribute and its value must
appear at the beginning of the declaration.
- subtype
- Are any additional attributes, such as COLUMN, LINE, or ITEM,
that are needed to identify the report component that you are formatting.
See Identifying a Report Component in a WebFOCUS StyleSheet for details.
- function
- Identifies the JavaScript function to run when you select
the report component.
The maximum length of a JAVASCRIPT=function argument,
including any associated parameters, is 2400 characters and can
span more than one line. If you split a single argument across a
line, you need to use the \ character at the end of the first line,
as continuation syntax. If you split an argument at a point where
a space is required as a delimiter, the space must be before the
\ character or be the first character on the next line. The \ character
does not act as the delimiter.
In this example,
JAVASCRIPT=myfunc(COUNTRY \
CAR MODEL 'ABC'),$
the argument correctly spans two
lines.
Note:
- You can use
the Dialogue Manager -HTMLFORM command to embed the report into
an HTML document in which the function is defined.
- When you have
an HTML document called by -HTMLFORM, ensure that the file extension
is .HTM (not .HTML).
For more information about the
-HTMLFORM command, see the Developing Reporting Applications manual.
- parameters
- Values that are passed to the JavaScript function. For details,
see Creating Parameters.
Example: Linking to a JavaScript Function
The
following displays the report and StyleSheet syntax used to link
to a JavaScript function. It also shows the JavaScript function
that is executed, and the result that is displayed in the browser.
The report request (which
contains the inline StyleSheet) is:
TABLE FILE GGORDER
SUM PRODUCT_ID
BY STORE_CODE
BY PRODUCT_DESCRIPTION NOPRINT
IF STORE_CODE EQ 'R1250'
ON TABLE HOLD AS JAVATEMP FORMAT HTMTABLE
ON TABLE SET PAGE-NUM OFF
ON TABLE SET STYLE *
TYPE=REPORT, GRID=OFF, $
TYPE=DATA, COLUMN=PRODUCT_ID, JAVASCRIPT=showitem(PRODUCT),$
ENDSTYLE
END
-RUN
-HTMLFORM JAVAFORM
The JAVAFORM.HTM file that contains
the JavaScript function is:
<HTML>
<HEAD>
<SCRIPT LANGUAGE="JavaScript">
// This function will display the value in the text box
function showitem(string) {
document.form1.text1.value = string;
}
// End the hiding here
</SCRIPT>
</HEAD>
<BODY>
!IBI.FIL.JAVATEMP;
<HR>
<B>Product Description:</B>
<FORM NAME="form1">
<INPUT TYPE="text" NAME="text1" SIZE="16"> </FORM>
</BODY>
</HTML>

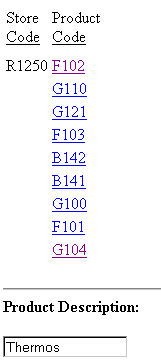

When you execute the report procedure,
the following report displays in the Web browser. If you select
a Product Code link, the JavaScript function ShowItem executes,
and displays the value of the PRODUCT_DESCRIPTION field (a NOPRINT
field) in the text box in the form below the report. For example,
if you select the Product Code G104, "Thermos" displays in
the Product Description field.
