Tracing Within the Microsoft Windows Environment

In this section: Trace Tool Menu Setting Trace Filtering How to: Access the Trace Tool Set Up the Tracing Process Reference: File Edit Manipulating the Text in the Window Options Help Tracing Level Descriptions

The Trace Tool is an independent tracing tool that captures all traces for the client applications, which use the API. To capture traces, the Trace Tool must be started before the client application connects to a server. Once the Trace Tool is started, traces are turned on and all API traces are written to the trace window and optionally a trace file. Traces may also be filtered for specific message types if so desired.

Warning: Tracing adds significant overhead and should only be used for application debugging.

Trace Tool Menu

The Trace Tool menu bar options enable you to review, modify, and save tracing information about applications running on the client workstation. To activate tracing and the tracing tool select the "Client Tracing Tool" icon from the Diagnostic Functions folder under where the Client software was installed on the Windows Start Menu.

The tool will start with an empty window and menu pull downs for File, Edit, Options and Help as described below. Once the tool is active, then start the client application. Application than are already running will not be traced!

The trace tool should look like the following image after the start of the GUI iWay Test Tool.

Reference: File

Use the File drop-down menu to save tracing information, and save user-tracing profile. You can also use this menu to exit the Trace Tool. The following table describes the options and functions of the File drop-down menu:

Option	Function
Save	Saves current window
Save As...	Saves current window to selected file.
Set Trace Log File	Selects log to trace to.
Exit	Closes the Trace Tool.

Reference: Edit

Typical window edit functions for find, clear, select, delete, copy.

Reference: Manipulating the Text in the Window

Use the Edit drop-down menu to clear, copy, select, or find text in the Trace Tool window. The following table describes the options and functions of the Edit drop-down menu:

Option	Function
Find	Enables you to search for text within the trace.
Clear	Erases all information in the window. If you do not clear the window before you execute a new trace, any new messages are appended to the information that already exists in the window.
Select All/None	Selects all trace information in the window, which can then be deleted or copied.
Copy	Copies selected information in the window to the Clipboard, while leaving the original text on the screen.
Delete	Enables you to delete portions of text.

Reference: Options

Use the Tool drop-down menu to control the appearance of the tracing window and to select specific display format options. The following table describes the options and functions of the Tool drop-down menu:

Option	Function
Font...	Opens a window that you use to control font size and color in the window.
Background Color...	Opens a window that you use to control background color in the window.
Always on Top	Ensures that the window always displays on the screen, and is not covered by other windows. Other windows requiring responses may appear behind the trace window, and consequently may not be visible. In such cases, moving the window will reveal the hidden windows. Note: Using Always on Top can, in some cases, conflict with third party screen saver programs. If conflicts do occur, set this option to OFF.
Defer Traces	Defers output of traces to the output window until the Defer Traces option is unchecked.
Filter Traces	Provides the ability to set tracing buffer size, trace-formatting options, and adds user-defined keywords to customize trace view.
Log Traces	Turn logging of traces to the traces file on (checked) or off (unchecked). Use the File menu/Set Trace Log File to name the file the tracing is going to.
Autosave Setting	Any settings changes are immediately save so they always maintained.
Save Settings Now	Save settings changes now.

Reference: Help

Typical windows help pull-down with help and about application information.

Setting Trace Filtering

By default all tracing levels are active when the tool is started. Selecting the Options/Filter Traces option brings up the following image to turn off selected trace messages.

Note: That certain message cannot be turned off.

Reference: Tracing Level Descriptions

API Entry/Exit Traces. This trace level displays each entry to and exit from an API command and the parameter values processed. These calls are a result of the commands sent by the client application, as well as those called internally by the API:

101	Represents an entry point.
102	Represents a normal exit.
103	Represents an abnormal exit.

API Resources. This trace level records communication calls made by an API client to the server, and the status of these communication events as recorded by the API:

201	Sending an SQL Request.
202	SELECT * FROM CAR.
203	Sent SQL Request/Receiving Data.
204	Displays internal requests (for example, COMMIT WORK).
205	Rcvd EOT.

Errors. This trace level records API internal events:

325	Analyzing field description data.
326	Encountering result rows.
335	SCB3 created.
336	SCB3 destroyed.
347	Default call to EDAQUIT.

API User Messages. Provides results from EDA SET commands:

401	Entry point.
402	Normal exit.
403	Abnormal exit (as per 1).

API Output Buffers. This trace level displays the data sent to the server in addition to the SQL being passed from the client:

501	SQL
501	END
501	TABLE
501	ON TABLE PCHOLD FORMAT ALPHA
501	END
502	Sending EOT

API Input Buffers. This trace level displays data entries being received by the client. This can be useful in determining whether the client is receiving the correct data:

601	EDA-Task 175: Rcvd SYSPRINT
601	EDA-Task 175: HOLD.MAS
602	EDA-Task 175: HOLD.FTM
602	EDA-Task 175: DATAVALUEFROMSERVER

API Internal Events. This trace level displays internal event tracing. Events such as memory allocation, spooling, and the receipt of Info Blocks are displayed at this level:

716	EDA-Task 423: Allocating 224 bytes of memory.
720	EDA-Task 305: INFO blocks -#cols:1,a_sz:1,b_sz:1,#rows:1.
740	EDA-Task 807: Sending on 1, Spooling out 3.

Communication Traces. This trace level displays the API communication.

851	Receive in next event.
814	Receive for hses: 65536

API Internal Events. Server communications trace messages that are further defined in the ODIN Communication Trace Levels.

The ODIN Communication Trace Levels include:

1 - (901) Errors

2 - (902) Warnings

3 - (903) Detail

4 - (904) Reserved for future use

5 - (905) I/O Buffers

Applications. Displays third-party traces.

Procedure: How to Access the Trace Tool

To activate tracing and the tracing tool select the Client Tracing Tool icon from the Diagnostic Functions folder under where the Client software was installed on the Windows Start Menu.

Procedure: How to Set Up the Tracing Process

1. Retrieve the Trace Tool as described in How to Access the Trace Tool.

Note: The Trace Tool must be started before the application connects to the server.

2. Select desired trace levels using the options pull-down.

3. Start the user application.

Two standard test tool applications are provided with the software and should be used to do initial testing to determine if a problem is customer application specific or generic. The test tools provide simple SQL input and output display. These are test tools and should not be used for production purposes. The tools can be found in the Diagnostics Functions folder in the software on the Windows menu. The names and purposes are:

Test Tool - ODBC	Uses ODBC connection.
Test Tool - OLEDB	Uses OLE DB connection.

4. In the Test Tool Statement window, enter any SQL statement. For example, enter select car from car. To execute the statement, click the Query button.

The SQL result set displays in the Results window of the Test Tool.

For ODBC:



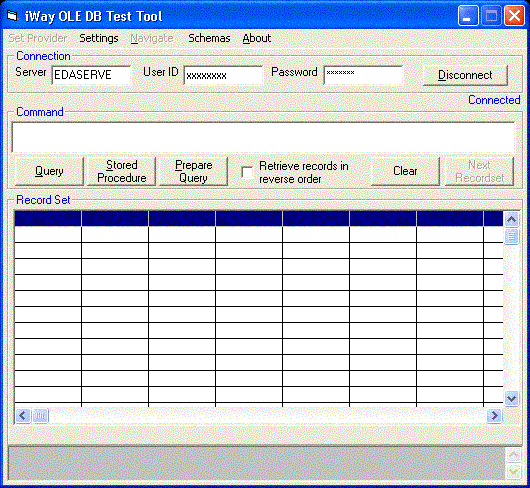

For OLE DB:

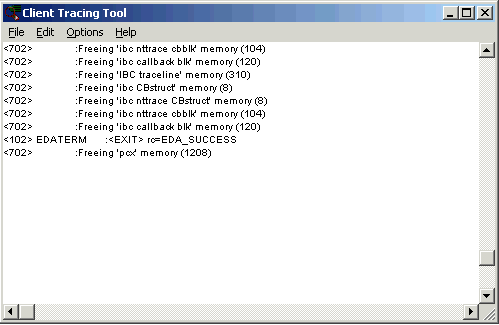

The trace information is now available for review in the trace tool window. Use the window scroll bar, or PageUp and PageDown keys.
