The Map component provides the following options:

• Live Maps

  The Live Maps dialog box allows you to set layer visibility, layer options, and add map services.

• Overview Map

  When you zoom in to a specific area on the map, the Overview Map dialog box displays a miniature full extent view of the map with the zoomed in area highlighted.

• Bookmarks

  The Bookmarks dialog box allows you to quickly access points of interest on the map that have been identified as bookmarks.

• Print

  The Print dialog box allows you to print the current map view that is displayed in your Web browser. You can also specify a title and subtitle for identification purposes that will appear on the printed copy.

For more information about the Map component in the viewer, see the WebFOCUS Adapter for Geographic Information Systems manual.

x

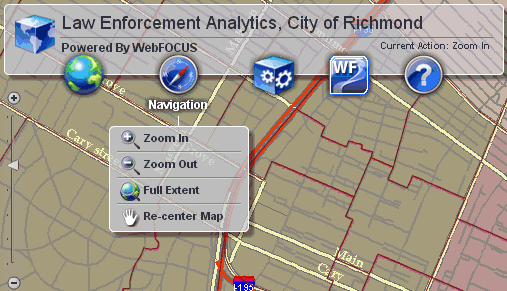

The Navigation component provides the following options:

• Zoom In

  Switches the map pointer (selection tool) to zoom in mode.

• Zoom Out

  Switches the map pointer (selection tool) to zoom out mode.

• Full Extent

  Zooms out the map view to a level that fits the screen and provides an overview of the map.

• Re-center Map

  Switches the map pointer (selection tool) to the hand tool, which allows you to click and drag the current map view.

For more information about the Navigation component in the viewer, see the WebFOCUS Adapter for Geographic Information Systems manual.

x

The Tools component provides the following options:

• Draw

  The Draw dialog box allows you to draw points, lines, shapes, and enter text directly on the map. You can also specify the color and size of the graphic or text.

• Identify

  The Identify dialog box allows you to display more information for a specific point on the map (for example, the type of crime).

For more information about the Tools component in the viewer, see the WebFOCUS Adapter for Geographic Information Systems manual.

x

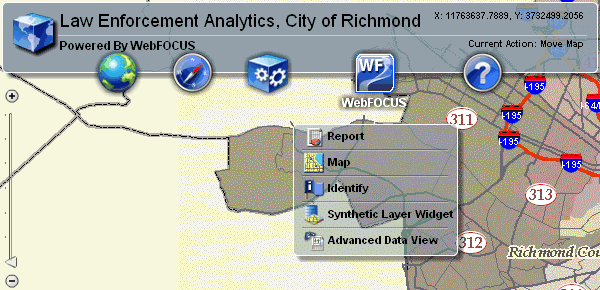

The WebFOCUS component provides the following options:

• Report

  The Report dialog box allows you to run the WebFOCUS report procedures that are available for each currently visible layer on the map.

• Map

  The Map dialog box allows you to run the WebFOCUS map rendering procedures that are available for each currently visible layer on the map.

• Identify

  The Identify dialog box allows you to run the WebFOCUS identify procedures that are available for each currently visible layer on the map.

• Synthetic Layer Widget

  The Synthetic Layer Widget dialog box allows you to set layer transparency and layer visibility options for synthetic layers.

• Advanced Data View

  The Advanced Data View dialog box allows you to navigate to single records or a group of records in the viewer.

For more information about the WebFOCUS component in the viewer, see the WebFOCUS Adapter for Geographic Information Systems manual.

x

The Help component provides the following options:

• Help

  Opens the online help for the viewer in a new browser window.

• IBI

  Opens the Information Builders Web site in a new browser window.

• ESRI

  Opens the ESRI Web site in a new browser window.

• Resources

  Opens the ESRI Resources Web site in a new browser window.

• About

  Opens the About dialog box in the viewer, which provides version information.

For more information about the Help component in the viewer, see the WebFOCUS Adapter for Geographic Information Systems manual.
