Using IBI Custom Event Listeners and Functions

In this section:

Top of page
x
ibiDataEvent

This event is dispatched when the data becomes available. Using this event allows the user to execute functions when the data is loaded or updated and the latest set of data becomes available.

You can execute function on a specific component when the data becomes available as shown below.

canvas_id.addEventListener(ibiDataEvent.DATA_LOADED, function_name);
private function function_name(e:ibiDataEvent):void
{
  var component_id:String = e.componentID;
}
Example: Using the ibiDataEvent Listener

Using ibiDataEvent listener, you can add a loading image (or message) to your application while the data is being loaded. The image (or message) will be displayed in the application while the data is being retrieved from WebFOCUS and loaded into data grid. Because ibiDataEvent is listening, it will disappear exactly when the data has finished loading.

The following function sets the loading image to disappear when the data has finished loading.

private function dataIsLoaded(e:ibiDataEvent):void
{
  PleaseWaitCanvas.visible = false;
  PleaseWaitCanvasImage.visible = false;
}

The loading image is embedded inside a canvas as shown below.

<mx:Canvas id="PleaseWaitCanvas" backgroundColor="#000000" verticalCenter="0" horizontalCenter="0"
  width="100%" height="100%" alpha="0.30" left="0" top="0" visible="false" >
</mx:Canvas>
<mx:Image source="WF_ENable_load.jpg" id="PleaseWaitCanvasImage" verticalCenter="0" horizontalCenter="0" visible="false"/>

In order to use the ibiDataEvent, you need to add the ibiDataEvent listener to the application when the application initializes.

private function init():void
{
  this.addEventListener(ibiDataEvent.DATA_LOADED, dataIsLoaded);
  …

  PleaseWaitCanvas.visible = true;
  PleaseWaitCanvasImage.visible = true;
}

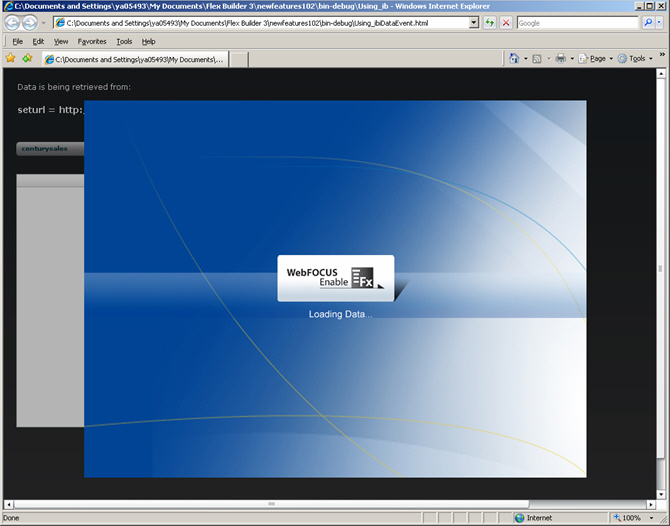

In this example, the loading image is set to be displayed when the application initializes, as shown in the following image.
Top of page
x
ibiFilterEvent

ibiFilterEvent is an internal event dispatched when the filter has completed filtering data. It is no longer needed when developing Enable applications. You can use ibiDataEvent instead to make sure that the filtered data is loaded. If you have used this event with the previous Beta Enable build, you need to replace this event with ibiDataEvent to accurately determine when the data has finished updating.

For example, if you have added the ibiFilterEvent to determine when the filter has completed using filtering component ID similar to the following:

private function init():void
{
  this.addEventListener(ibiFilterEvent.FILTER_COMPLETED, filterIsComplete);
}

private function filterIsComplete(e:ibiFilterEvent):void
{
  if(e.currentFilterID == 'filter_component_id'){
 }
}

You need to replace them with ibiDataEvent instead to determine when the specific data grid has finished updating data based on the filter applied as shown below:

private function init():void
{
  this.addEventListener(ibiDataEvent.DATA_LOADED, dataReadyHandler);
}

private function dataReadyHandler(e:ibiDataEvent):void
{
  if(e.componentID == 'grid_to_be_filtered_id'){
 }
}
Top of page
x
Using IBI Custom Functions

In this section:

x
reloadData

The reloadData function will reload the data from the server and refreshes all the components in ibiCanvas. This function will reset the filters applied except for ibiFilterDefault values. This function is particularly useful when the seturl property is dynamically changed on the ibiDataGrid or when you need to re-run seturl to retrieve a new set of data from the server.

ibicanvas_id.reloadData("ibiDataGrid_id",optional_parameter);
x
reloadDataOnly

The reloadDataOnly function will only reload the data from the server and refreshes all the components in ibiCanvas. This function will not reset the filters but keep all the filters already applied to the application. This function is particularly useful when the seturl property is dynamically changed on the ibiDataGrid or when you need to re-run seturl to retrieve a new set of data from the server.

ibicanvas_id.reloadDataOnly("ibiDataGrid_id",optional_parameter);
x
refreshDP

refreshDP refreshes the individual component specified, such as ibiDataGrid or ibi chart components. refreshDP does not reload the data from the server. This function is particularly useful when you need to change ibiGroupBy and ibiUseColumns properties on ibiDataGrid or ibiXField and ibiYField properties on ibiColumnChart dynamically in the application.

ibicanvas_id.refreshDP("component_id",re-initialize_option,optional_parameter);

where:

re-initialize_option
Is True or False.
x
refreshComplete

This property is available only in the ibiCanvas component. It calls a custom function specified when all the data has finished loading. When a filter is applied the function will be called after all the components in ibiCanvas have been updated with the filter. Starting in release 2.0.0, you can use ibiDataEvent instead to make sure that the filtered data is loaded before calling a custom function.
x
doFilter

You can use the doFilter function to manually apply a filter using a filterable component such as ibiTextInput, ibiComboBox, and so on.

canvas_id.doFilter('filtering_component_id');
