Logging FOCUS Database Server Activity in HLIPRINT

In this section: HLIPRINT File Contents HLIPRINT File Contents (Extended Format) Creating and Using an HLIPRINT File Producing HLIPRINT Reports

FOCUS can record all user activity on the FOCUS Database Server in a sequential file. Each HLI command is a single action. Each MODIFY/Maintain transaction or TABLE request may execute a series of actions, such as database opens and closes, reads, key matches, and value changes. When you use the ECHO option, the sequential file (allocated to ddname HLIPRINT) records:

• Each user action.
• The database for which the action took place.
• The database segment read or modified by the action.
• The batch job or user ID that issued the action.

You can generate an extended form of the HLIPRINT file by using the STAT option. In addition to the information displayed by the ECHO option, the extended form lists the following:

• The date and time of the action.
• The amount of CPU time it took to execute the action.
• The number of I/O operations required to execute the action.
• For FOCUS users, the name of the FOCUS procedure (FOCEXEC) executing the action (or a blank field for interactive commands).
• For MODIFY/Maintain requests using Case Logic, the name of the case executing the action or a blank field for non-case logic procedures.

The HLIPRINT file has three uses:

• It provides a guide for restarting procedures that end prematurely. The restart must be tailored to each application, however, as the HLIPRINT file does not log transaction data.
• It provides a means for usage accounting based on the number of actions taken and on the amount of resources consumed.
• It provides a means for monitoring resource utilization, particularly during testing of new procedures.

HLIPRINT File Contents

The following is a sample of the HLIPRINT file generated with the ECHO option. A description of the columns follows.

CMD  FILENAME STATUS NEWSEG  TARGET  ANCHOR NTEST   USERID  REF NUMB
OPN  FOCUSSU       0                                WIBDIW  00000001
RD   CAR           0                            1   WIBDIW  00000002
OPN  CAR           0                                WIBEFO  00000003
MINT CAR           0                                WIBEFO  00000004
MATA CAR           0         ORIGIN                 WIBEFO  00000005
MATB CAR           0         COMP                   WIBEFO  00000006
MDEL CAR           0         COMP                   WIBEFO  00000007
MATB CAR           0         ORIGIN                 WIBNNR  00000008
MATB CAR           1         COMP                   WIBNNR  00000009
MINC CAR           0         COMP                   WIBNNR  00000010
MATB CAR           0         ORIGIN                 WIBMHK  00000011
MATB CAR           0         COMP                   WIRMHK  00000012
MDEL CAR           0         COMP                   WIBMHK  00000013
MATB CAR           0         ORIGIN                 WIBEFO  00000014
MATB CAR           1         COMP                   WIBEFO  00000015
MINC CAR           0         COMP                   WIBEFO  00000016
MATB CAR           0         ORIGIN                 WIBNNR  00000017
MATA CAR           0         COMP                   WIBNNR  00000018
MINC CAR           1         COMP                   WIBNNR  00000019
CLO  CAR           0                                WIBNNR  00000020
CLO  FOCUSSU       0                                WIBNNR  00000021

The columns in the chart are:

CMD

The type of action:

OPN

Open a file.

RD

Read a page from a FOCUS database.

MINT

MODIFY/Maintain/SU initialization.

MATA/MATB/MATC/MATD

Match a field value or values in the database (MODIFY/MAINTAIN MATCH subcommand)

MINC

Include a new segment instance (MODIFY/Maintain INCLUDE subcommand).

MUPD

Update a segment instance (MODIFY/Maintain UPDATE subcommand).

MDEL

Delete a segment instance and its descendents (MODIFY/Maintain DELETE subcommand).

MNEX

Move to the next segment instance in the segment chain (MODIFY/Maintain TEXT subcommand).

MREP

Move to the first segment instance in the segment chain (MODIFY/Maintain REPOSITION subcommand).

MCMT

COMMIT subcommand.

MRBK

ROLLBACK subcommand.

SAV

Write transactions from buffer to the database

CLO

Close a file.

Any other action in this column is an HLI command issued when using HLI with SU.

FILENAME

The ddname of the centrally controlled database on which the action took place. Note that the FILENAME column in the sample HLIPRINT file lists a file allocated to ddname FOCUSSU. This is a FOCUS work file.

STATUS

Contains either the value of the FOCURRENT variable or the HLI status code for the action. If the action ended normally, this value is set to 0. If a MATCH command failed to locate a segment instance (ON NOMATCH condition), or if a NEXT command reached the end of a segment chain (ON NONEXT condition) this value is set to 1. Otherwise, it is the FOCURRENT field or the HLI status code for the action. HLI Status Codes Returned in FCB Word 24, lists the HLI status codes.

NEWSEG

The name of the first segment of new information (for HLI only).

TARGET

The segment read or modified by the action.

ANCHOR

The anchor segment (for HLI only).

NTEST

The number of test conditions qualifying a retrieved record. For FOCUS users, the number of the database page that was read by an RD action. A page for a FOCUS database is a 4096-byte physical record. A page for an XFOCUS database is a 16K-byte physical record.

USERID

The TSO user ID or job ID that issued the action.

REF NUMB

The action number in the HLIPRINT file. REF NUMB is useful with the FOCUS ? FILE command. This query displays a chart showing when each segment in a FOCUS database was last changed (this command is described in the Developing Applications manual). The last column in that chart, LAST TRANS NUMBER, lists a number for each segment in the file. If the file was last modified under SU, these numbers refer to the REF NUMB column in the HLIPRINT file, pointing to the last action performed on the segment (usually a CLO or SAV action).

HLIPRINT File Contents (Extended Format)

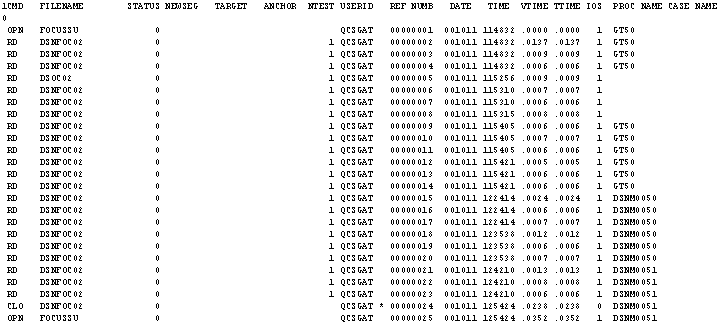

The following figure shows a sample extended HLIPRINT file. The columns are the same as those in the HLIPRINT file described in HLIPRINT File Contents, with the additions described following the sample. If you display the file on a system editor, note that the first column is reserved for print control characters.

A Master File is supplied for the extended HLIPRINT file (member HLIPRINT in MASTER.DATA on the distribution tape). This enables you to write FOCUS reports against the file. See Producing HLIPRINT Reports for details on producing these reports.

DATE

Date the action was executed, in YYMMDD (year, month, day) format.

TIME

Time the action finished execution, in HIIMMSS (hours, minutes, seconds) format.

VTIME

Total elapsed CPU time for executing the action (as indicated in the ASCBEJST field of the ASCB for the FOCUS Database Server). If the action took longer than 99.99 seconds to execute, VTIME displays a value of 99.99. Note that the value of VTIME is .0000 for the first action after the server was started.

TTIME

Same as the VTIME column.

IOS

Number of database input/output (I/O) operations performed to complete the action. This number reflects only I/O operations on FOCUS or XFOCUS databases and does not include I/O operations on other files such as Master Files. If the action required more than 9999 I/O operations, IOS displays a value of 9999.

PROCNAME

For FOCUS users, the name of the FOCUS procedure (FOCEXEC) executing the action. For users issuing FOCUS commands live on the terminal, PROCNAME is blank.

For HLI users, the contents of FCB words 7 and 8. SU does not use words 7 and 8, so HLI users can define their own contents for these words and have them displayed in the PROCNAME column.

CASE NAME

For MODIFY/Maintain requests only.

If the request defines a temporary field called SUPRINTNAME (pronounced SU print name), it is the value of this field. SUPRINTNAME must be an alphanumeric field no longer than 12 characters. For example, if your MODIFY/Maintain request contains the following command:

COMPUTE SUPRINTNAME/A12 = 'MARK';

the CASE NAME column will display the value MARK until the next COMPUTE command places another value in the SUPRINTNAME field.

If the request does not define SUPRINTNAME but uses Case Logic, this contains the name of the case that executed the action. Otherwise, CASE NAME is blank.

Creating and Using an HLIPRINT File

To record activity in the HLIPRINT file, follow these instructions when starting the sink machine:

1. When recording the HLIPRINT file on disk or tape, make sure there is adequate storage space for the file. HLIPRINT files can grow very quickly; a single MODIFY/Maintain transaction or TABLE command can generate several actions and several lines of output, so a day's use can produce thousands of lines. When the space reserved for HLIPRINT is exhausted, the FOCUS Database Server cannot recover.

2. Allocate the HLIPRINT file in the startup JCL for the sink machine. Give the file the following characteristics:
   • For simple HLIPRINT files (the ECHO option): records are fixed-length and blocked format (RECFM=FB), with a length of 88 characters (LRECL=88), and the block size must be some multiple of 88 (for example, BLKSIZE=8800).
   • For extended HLIPRINT files (the STAT option): records are fixed-length and blocked (RECFM=FB), with a length of 133 characters (LRECL=133). The block size must be a multiple of 133 (for example, BLKSIZE=1330).
   • In general, the larger the block size, the fewer I/O operations FOCUS has to perform. Keep in mind, however, that if the FOCUS Database Server terminates abnormally, all records on the last unwritten block are lost.

Give HLIPRINT the following disposition:

• Use NEW for a new file.
• Use OLD for existing files if you want the new output to replace the present file contents.
• Use MOD for existing files when you want to append new output to the existing file contents.

The following is a sample DD card for allocating a new file using the simple format:

//HLIPRINT DD DSN=SULOG.DATA,
//            DCB=(LRECL=88,BLKSIZE=8800,RECFM=FB),
//            DISP=(NEW,CATLG),UNIT=SYSDA

This DD card allocates a new file for the extended HLIPRINT format:

//HLIPRINT DD DSN=SULOG.DATA,
//            DCB=(LRECL=133,BLKSIZE=13300,RECFM=FB),
//            DISP=(NEW,CATLG),UNIT=SYSDA

This DD card allocates an existing file with the new output appended to the present file contents:

//HLIPRINT  DD  DSN=SULOG.DATA,DISP=MOD,DCB=...

The HLIPRINT file can be allocated to tape, to disk, or to a SYSOUT queue.

3. Use the following EXEC card in the FOCUS Database Server JCL to execute the HLISNK program:

   //HLISNK  EXEC PGM=HLISNK, PARM={'password ECHO'|'password STAT'}

where:

ECHO

Records activity in a simple HLIPRINT file.

STAT

Records activity in an extended HLIPRINT file.

The password is optional. If you choose to omit it, remember to type a leading blank before the ECHO or STAT keyword. Otherwise, FOCUS will not interpret it correctly.

Producing HLIPRINT Reports

The extended HLIPRINT log facility has an associated Master File called HLIPRINT. This enables you to produce summary reports of your HLIPRINT log information using FOCUS TABLE commands. These summary reports can be used to:

• Determine peak FOCUS Database Server usage by user, time of day, database, or application.
• Troubleshoot performance problems in procedures or database design.
• Perform usage accounting.

Before you can issue TABLE commands against HLIPRINT, you must allocate ddname HLIPRINT to the log file. If you named your HLIPRINT data set MYTRACE.HLIPRINT.DATA, you would issue the following command from within FOCUS:

TSO ALLOCATE F(HLIPRINT) DA('MYTRACE.HLIPRINT.DATA') SHR

You must also allocate ddname MASTER to the Master File PDS supplied with FOCUS.

After allocating HLIPRINT and MASTER, you can issue TABLE requests against the HLIPRINT file.

The following sample request determines how much of the sink machine's resources were used by each userid:

TABLE FILE HLIPRINT
SUM CPU AND IOS
BY USERID
END

This request produces a report showing the total elapsed job step time and the number of I/O operations used by the sink machine on behalf of each user ID.

The next sample request can be used to locate performance problems in an application:

TABLE FILE HLIPRINT SUM CPU AND IOS
BY PROC_NAME BY CASE_NAME ON PROC_NAME SUMMARIZE
END

The output is:

This report shows that case LOCATE in the procedure CARMOD consumes most of the CPU time and I/O resources. This particular part of the application could probably be redesigned to run more efficiently.

For more information about report requests, see your FOCUS documentation.
