The XMI server is an application (program XMI) that intercepts DL/I calls from the IMS/DB Interface address space and issues them to IMS. Before you can invoke the Interface with this configuration, there must be an XMI server job executing with the appropriate parameter settings and with an available PCB for the databases you want to access.
Therefore, access to the XMI server is a two-part process. The two parts consist of the following:
To initiate an XMI server, you run a region controller program and pass it parameters that describe the environment you need. The following chart lists the most common parameters:
Parameter |
Value |
Definition |
Mode | BMP | Indicates Batch Message Processing mode. This mode accesses online IMS databases through the IMS/DC address space. |
DLI | Indicates local mode. This mode accesses IMS databases that you allocate locally. | |
Program | XMI | Loads and accesses the XMI server in the region controller address space. For information on accessing the BMP extension, see Release Dependent Interface Features. |
PSB | psbname | Identifies the PSB to use. |
One XMI server can service multiple users, but each user must have a separate PCB. Therefore, to allow multiple users, the PSB for the server should contain duplicate PCBs.
You may not have to actually execute this step because if an XMI server is already running with the correct parameters and an available PCB, you can use it.
XMI server programs can be started at any time. In normal usage, one such job will be started in the morning with additional jobs started during the day, as the need for additional PCBs arises.
The job class and time expiration parameters used with the XMI server job must allow for a long residence in the system, and the priority should be sufficiently high to give good response to the users being serviced. In setting the various job parameters that affect response, remember that these jobs spend most of their time in the WAIT state consuming no resources, since they have nothing to do when not responding to DL/I calls. Even when processing such calls, they only do minimal work. All the logical work of the Interface is done in the various TSO or MSO address spaces.
When you use the XMI server to access IMS databases, you must allocate a common communication file (to ddname FOCBMP) in both the FOCUS address space and the XMI server address space. The Communication File is discussed in Additional Instructions for Using the XMI Server.
This section includes the following topics:
If your site does not have IMS 3.1 (or a subsequent version) installed, you must use the XMI server to access IMS databases if either of the following conditions exists:
Because this situation is common, the use of the IMS/DB Interface without the XMI server is largely limited to batch jobs that can allocate the required databases (because IMS/DC or CICS is not active) or to single users.
If IMS/DC or CICS does permit concurrent database access by other jobs, and you are not running from MSO or CMS, you can run FOCUS without the XMI server, as described in Access to IMS With FOCUS Loaded by the Region Controller.
The following sections provide detailed information about the XMI server, including sample JCL and CLISTs.
BMP (Batch Message Processing) mode accesses online IMS databases under the control of IMS/DC. Therefore, you can access Fast Path databases with this configuration, and, if a record is updated, you retrieve the updated version.

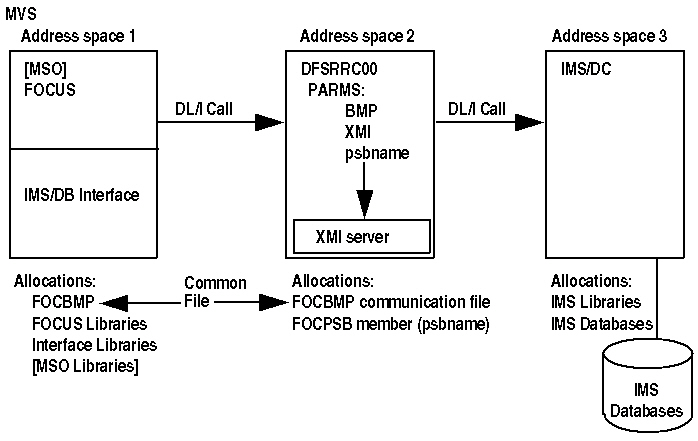

The following diagram illustrates the relationship between FOCUS, the XMI server, and IMS:
Address Space |
Contains |
1 |
|
2 |
DFSRRC00 loads the XMI server into its address space because of the XMI parameter in your JCL. You must allocate the same communication file here as in the FOCUS address space. You must select the PSB prior to your session and pass its name to program DFSRRC00 as a parameter. This member is the sequential file you allocate to ddname FOCPSB. |
3 |
The BMP parameter that you pass to program DFSRRC00 indicates that the IMS databases are online and are allocated in the IMS/DC address space. |
To initiate an XMI server with this configuration, submit the following JCL after editing it to conform to your site's standards and adding a JOB card.
You do not have to submit this JCL if an XMI server job that has an available PCB is already running with the following parameter settings
//BMPXMI EXEC PGM=DFSRRC00,REGION=nn,PARM='BMP,XMI,psbname[,,,,,,,,,nba,oba]'
//STEPLIB DD DSN=IMS.RESLIB,DISP=SHR
// DD DSN=prefix.IMS.LOAD,DISP=SHR
// DD DSN=prefix.FOCLIB.LOAD,DISP=SHR
//FOCBMP DD DSN=prefix.FOCBMP.DATA,DISP=SHR
//FOCPSB DD DSN=prefix.FOCPSB(psbname),DISP=SHR
//DFSRESLB DD DSN=IMS.RESLIB,DISP=SHR
//ERRORS DD DSN=prefix.ERRORS.DATA,DISP=SHR
//SYSPRINT DD SYSOUT=*
//
where:
(FOC4214) REMOTE DLI CALL ERROR STATUS FOR SEGMENT:XXX/ FR
Note:
Once the XMI server job is executing, you can invoke the Interface from a CLIST or from batch JCL, as described in Section Invoking the Interface in the XMI Server Environment, Invoking the Interface in the XMI Server Environment.
DLI mode accesses IMS databases that you allocate locally in the DFSRRC00 address space. Since you do not access the IMS/DC address space, you cannot use Fast Path databases and, if a record is updated during your session, you cannot retrieve the updated record.
Note: If you substitute the parameter DBB for DLI, IMS uses ACBs when accessing databases. This ensures that the database is in sync with the IMS descriptions you are using.
The following diagram illustrates the relationship between FOCUS, the XMI server, and IMS:
Address Space
Contains
1
2
DFSRRC00 loads the XMI server into its address space because of the XMI parameter in your JCL. You must allocate the same communication file here as in the FOCUS address space.
The DLI parameter that you pass to program DFSRRC00 indicates that the IMS databases are allocated locally in the DFSRRC00 address space.
You must select the PSB prior to your session and pass its name to program DFSRRC00 as a parameter. This member is the sequential file you allocate to ddname FOCPSB.
To initiate an XMI server with this configuration, submit the following JCL after editing it to conform to your site's standards and adding a JOB card. Note that you must allocate your IMS databases, DBDs, and PSBs in this JCL.
You do not have to submit this JCL if an XMI server job that has an available PCB is already running with the following parameter settings
//DLIXMI EXEC PGM=DFSRRC00,REGION=nn,PARM='DLI,XMI,psbname'
//STEPLIB DD DSN=IMS.RESLIB,DISP=SHR
// DD DSN=prefix.FOCLIB.LOAD,DISP=SHR
// DD DSN=prefix.IMS.LOAD,DISP=SHR
//DFSRESLB DD DSN=IMS.RESLIB,DISP=SHR
//IMS DD DSN=IMS.PSBLIB,DISP=SHR
// DD DSN=IMS.DBDLIB,DISP=SHR
//DFSVSAMP DD DSN=IMS.DFSVSAMP(bufpool),DISP=SHR
//PATDB01 DD DSN=IMS.PATIENT.DB,DISP=SHR
//PATDBIX DD DSN=IMS.PATIENT.IX,DISP=SHR
//PATDBIX1 DD DSN=IMS.PATIENT.IX1,DISP=SHR
//PATDBIX2 DD DSN=IMS.PATIENT.IX2,DISP=SHR
//PATDBIX3 DD DSN=IMS.PATIENT.IX3,DISP=SHR
//FOCBMP DD DSN=prefix.FOCBMP.DATA,DISP=SHR
//FOCPSB DD DSN=prefix.IMS.FOCPSB(psbname),DISP=SHR
//ERRORS DD DSN=prefix.ERRORS.DATA,DISP=SHR
//SYSPRINT DD SYSOUT=*
//
where:
Note:
Once the XMI server job is executing, you can invoke the Interface from a CLIST or from batch JCL, as described in Invoking the Interface in the XMI Server Environment.
If you are using CICS Version 3.3 or lower, see the instructions for Changing Addressibility Mode of the XMI Server.
If you are using a CICS Version later than Version 3.3, skip the next section and go to the section entitled Program DFHDRP.
In CICS Version 3.3 and lower, the module DFSDRP (CICS version of the IMS region controller) ran in a 24-bit addressability mode. Our XMI Server, which is invoked by the module DFHDRP, executes in a 31-bit addressability mode. As a result, the DFHDRPE module abends with an S0C4.
The following JCL will allow you to change the XMI Server from passing data in 31-bit mode to 24-bit mode. It is included on the tape in prefix.CTLLIB.DATA(IMTDLI2).
//*--------------------------------------------------------------------------
//* THIS JCL WILL ALLOW THE XMI SERVER TO ISSUE DLI CALLS TO CBLTDLI
//* WHEN THE DLI SYSTEM IS AMODE 24 (EG. CICS330)
//* PLEASE UPDATE THE DATASET NAMES TO REFLECT THOSE ON YOUR SYSTEM
//*--------------------------------------------------------------------------//*
//LNKIMSRV EXEC PGM=IEWL,PARM='NCAL,LET,LIST,SIZE=1024K'
//OLDMOD DD DSN=prod.FOCLIB.LOAD,DISP=SHR
//FOCCTL DD DSN=prod.FOCCTL.DATA,DISP=SHR
//IMTDLI2 DD DSN=prod.FOCCTL.DATA,(IMTDLI2),DISP=SHR
//SYSLMOD DD DSN=new.FOCLIB.LOAD,DISP=SHR
//SYSUT1 DD UNIT=SYSDA,SPACE=(CYL,(10,1))
//SYSPRINT DD SYSOUT=*
//SYSLIN DD
INCLUDE IMTDLI2
INCLUDE OLDMOD (IMSRV)
INCLUDE FOCCTL (IMSRV)
NAME IMSRV (R)
/*
Modify the JCL and submit it. Upon successful completion, the XMI Server will function in 24-bit mode which is compatible with the CICS release.
Program DFHDRP accesses online IMS databases under the control of CICS. This configuration consumes a lot of communication resources and, since there is no IMS/DC address space, it cannot access Fast Path databases. However, since the databases are online, if a record is updated, you retrieve the updated version.
Note:

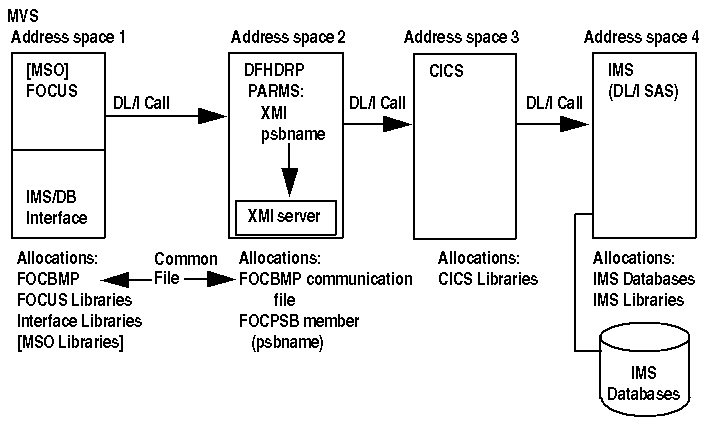

The next diagram illustrates the relationship between FOCUS, the XMI server, CICS, and IMS:
Address Space |
Contains |
1 |
|
2 |
DFHDRP loads the XMI server into its address space because of the XMI parameter in your JCL. You must allocate the same communication file here as in the FOCUS address space. You must select the PSB prior to your session and pass its name to program DFHDRP as a parameter. This member is the sequential file you allocate to ddname FOCPSB. |
3 |
|
4 |
The IMS databases are online and are allocated in the IMS DL/I SAS address space. |
To initiate an XMI server with this configuration, submit the following JCL after editing it to conform to your site's standards and adding a JOB card.
You do not have to submit this JCL if an XMI server job that has an available PCB is already running with the following parameter settings
//XMICICS EXEC PGM=DFHDRP,REGION=nn,PARM='SSA=3000,PGM=XMI,PSB=psbname,
// CICS=cics_applid'
//STEPLIB DD DSN=CICS.LOAD,DISP=SHR
// DD DSN=prefix.IMS.LOAD,DISP=SHR
// DD DSN=prefix.FOCLIB.LOAD,DISP=SHR
//DFHLIB DD DSN=CICS.LOAD,DISP=SHR
//FOCBMP DD DSN=prefix.FOCBMP.DATA,DISP=SHR
//FOCPSB DD DSN=prefix.FOCPSB(psbname),DISP=SHR
//ERRORS DD DSN=prefix.ERRORS.DATA,DISP=SHR
//SYSPRINT DD SYSOUT=*
//
where:
cics_applid
Note:
Once the XMI server job is executing, you can invoke the Interface from a CLIST or from batch JCL, as described in Invoking the Interface in the XMI Server Environment.
Before you can invoke the Interface in the XMI server environment, an XMI server job, initiated with the appropriate parameter settings, must be running and must have an available PCB for each database you will access. PCBs for the XMI server are discussed in Additional Instructions for Using the XMI Server.
To invoke the Interface interactively, execute the following CLIST after editing it to conform to your site's standards
PROC 0
CONTROL NOMSG
FREE DDNAME(USERLIB ERRORS MASTER FOCEXEC FOCBMP FOCLIB)
ALLOC F(ERRORS) DA('prefix.ERRORS.DATA') SHR REUSE
ALLOC F(USERLIB) DA('prefix.IMS.LOAD' +
'prefix.FUSELIB.LOAD') SHR REUSE
ALLOC F(MASTER) DA('prefix.MASTER.DATA') SHR REUSE
ALLOC F(FOCEXEC) DA('prefix.FOCEXEC.DATA') SHR REUSE
ALLOC F(FOCBMP) DA('prefix.FOCBMP.DATA') SHR REUSE
ALLOC F(FOCLIB) DA('prefix.FOCLIB.LOAD') SHR REUSE
CALL 'prefix.FOCLIB.LOAD(FOCUS)'
where:
To invoke the Interface as a batch job, submit the following sample JCL after editing it to conform to your site's standards and adding a JOB card
//FOCXMI EXEC PGM=FOCUS,REGION=nn
//STEPLIB DD DSN=prefix.FOCLIB.LOAD,DISP=SHR
// DD DSN=prefix.IMS.LOAD,DISP=SHR
// DD DSN=prefix.FUSELIB.LOAD,DISP=SHR
//ERRORS DD DSN=prefix.ERRORS.DATA,DISP=SHR
//FOCBMP DD DSN=prefix.FOCBMP.DATA,DISP=SHR
//FOCEXEC DD DSN=prefix.FOCEXEC.DATA,DISP=SHR
//MASTER DD DSN=prefix.MASTER.DATA,DISP=SHR
//SYSOUT DD SYSOUT=*
//SYSPRINT DD SYSOUT=*
//SYSIN DD *
TABLE FILE ...
.
.
.
END
FIN
/*
//
where:
This section explains how to allocate the common communication files needed for the XMI server, how to create PSBs for use with the XMI server, and how to terminate XMI server jobs.
The "handshake" between the Interface, running in its address space (or as a batch job), and XMI, running in another address space, requires a communication file accessible to both. This file must be allocated to ddname FOCBMP. It consists of a single 16-byte record, and it plays no role in subsequent message traffic between the two programs. Space for this file must be allocated once (on a permanently mounted disk pack) and catalogued as part of the installation of the XMI server (see Installation Instructions). The data set name is irrelevant.
Note: The following discussion assumes that the FOCUS production libraries are stored in data sets catalogued under the same high-level qualifier. The identifier "prefix" denotes this common high-level qualifier.
After the communication file has been created, when you subsequently invoke the Interface and the XMI server, allocate this file as follows:
//FOCBMP DD DSN=prefix.FOCBMP.DATA,DISP=SHR
From |
Allocation |
From |
Allocation |
The CLIST that invokes FOCUS | ALLOC F(FOCBMP) DA('prefix.FOCBMP.DATA') SHR REUSE |
A FOCUS session | {MVS|TSO} ALLOC F(FOCBMP) DA('prefix.FOCBMP.DATA') SHR REU |
Batch FOCUS JCL or MSO server JCL | //FOCBMP DD DSN=prefix.FOCBMP.DATA,DISP=SHR |
An MSO or FOCUS session | DYNAM ALLOC FILE FOCBMP DATASET prefix.FOCBMP.DATA SHR |
When running MSO, it is recommended that you allocate the communication files in the MSO server JCL. From TSO, you can allocate the FOCBMP file any time before you first attempt to use it, in the logon procedure, from a CLIST executed before you enter FOCUS, or from within the session.
When several concurrent XMI jobs are active, each one requires its own communication file. Each XMI server job must allocate a different file-it does not matter which one-to ddname FOCBMP.
For example, XMI job 1:
//FOCBMP DD DSN=prefix.FOCBMP.DATA,DISP=SHR
XMI job 2:
//FOCBMP DD DSN=prefix.FOCBMP1.DATA,DISP=SHR
Every TSO ID or MSO server must allocate all of the communication files corresponding to the XMI jobs it might want to use. Each communication file must be allocated to a different but standard ddname. These ddnames are FOCBMP, and FOCBMP1 through FOCBMP15. For example:
DYNAM ALLOC FILE FOCBMP DA prefix.FOCBMP.DATA SHR
DYNAM ALLOC FILE FOCBMP1 DA prefix.FOCBMP1.DATA SHR
It does not matter how the communication files and the FOCBMP ddnames are paired. For example, if two XMI server jobs are active, the user can allocate their files to any two of the sixteen standard ddnames.
In the interest of simplicity, each user should allocate all of the communication files that were created at installation time, even if the corresponding XMI jobs may not be active. This technique makes it possible to use a common CLIST for these allocations.
If none of the FOCBMP files are allocated, the Interface does not attempt to use the XMI server; it issues its own DL/I calls instead. These DL/I calls will be successfully transmitted to IMS only if you are not running MSO and if your environment is configured as described in Access to IMS With FOCUS Loaded by the Region Controller.
Since IMS uses the PCB to maintain an application program's position in the database, concurrent users who are serviced by the same XMI job cannot share PCBs.
Each user application that accesses the server queries all the XMI jobs to which it is linked through the communication files, until it finds one that has a free PCB appropriate for reporting on the database. (The search for an available PCB is transparent to the user.) The PCB remains occupied for the duration of the retrieval portion of a request and is freed prior to the output portion of the request.
Thus, if ten users need concurrent access to the SALES database, the PSB must contain at least ten PCBs that correspond to the Master File for SALES. The eleventh user will receive a diagnostic message indicating that there is no free PCB available at the time. (In this case, the user should initiate another XMI server, as illustrated in previous sections.)
The ten SALES PCBs can reside in one of the following:
The IMS DBA must determine which configuration is best for the site. The tradeoff is between a single large PSB that ties up only one XMI region or several XMI regions, each running a non-duplicated and therefore smaller PSB.
Note: If the PSB contains multiple PCBs for the same database, in order to allow access through secondary indexes, you must duplicate the whole block of PCBs. IMS Overview and Mapping Concepts, and Chapter 3, Creating FOCUS Descriptions, describe secondary index PCBs.
A successfully started XMI server job will not end automatically; the operator must terminate it in one of three ways:
The MVS cancel should be avoided because of its potential impact on the IMS/DC region if the cancellation occurs while the XMI server is processing a DL/I call. The MVS cancel will also bypass the server's own cleanup process with the result that a 4K area in the CSA (Common Storage Area) will not be freed and will remain unavailable until the next IPL.
The IMS cancel will properly disconnect the XMI server and IMS/DC regions without any impact on the latter, but it will bypass the freeing of the 4K communication area in the CSA.
Termination through job XMIKILL avoids problems. The job sends the server a termination message that breaks into the server message queue ahead of all other messages addressed to it. Upon receipt of this message, the server performs its cleanup and returns to IMS, signaling a normal completion.
Sample JCL for job XMIKILL follows
//XMIKILL EXEC PGM=FOCUS,REGION=nn
//STEPLIB DD DSN=prefix.FOCLIB.LOAD,DISP=SHR
//ERRORS DD DSN=prefix.ERRORS.DATA,DISP=SHR
//SYSOUT DD SYSOUT=*
//ddname DD DSN=comfile,DISP=SHR
//FOCEXEC DD DSN=prefix.FOCEXEC.DATA,DISP=SHR
//SYSPRINT DD SYSOUT=*
//SYSIN DD *
EX XMI ACTION=STOP,GATEWAY=FOCBMP
FIN
/*
//
where:
Any of the three termination methods can be invoked at any time, without impact on those who might be actively using the canceled job (except for the impact on IMS/DC discussed previously). All such users will receive one of several error messages, depending on where in their retrieval process the cancellation occurred. Their retrieval ends cleanly; in no case will the user ABEND or be left with a hung terminal.
