SQL.Function Syntax for Direct DBMS Function Calls

The SQL adapters support SQL scalar functions in a request. The function must be row based and have a parameter list that consists of a comma-delimited list of columns, constants, or expressions. In order to reference the function in a request, prefix the function name with SQL.

The following example creates the table GGORA, which has columns Biscotti, Capuccino, Croissant, Espresso, and Latte, some of which are null. It then issues a TABLE request that calls the SQL function COALESCE. COALESCE returns the first column in the parameter list that does not contain a null value, if one exists.

The Master File for GGORA is:

FILENAME=GGORA  , SUFFIX=SQLORA     , IOTYPE=STREAM, $
  SEGMENT=GGORA, SEGTYPE=S0, $
    FIELDNAME=CATEGORY, ALIAS=CAT, USAGE=A11, ACTUAL=A11,
      MISSING=ON, $
    FIELDNAME=Biscotti, ALIAS=BIS, USAGE=I08, ACTUAL=A08,
      MISSING=ON, $
    FIELDNAME=Capuccino, ALIAS=CAP, USAGE=I08, ACTUAL=A08,
      MISSING=ON, $
    FIELDNAME=Croissant, ALIAS=CROI, USAGE=I08, ACTUAL=A08,
      MISSING=ON, $
    FIELDNAME=Espresso, ALIAS=ESP, USAGE=I08, ACTUAL=A08,
      MISSING=ON, $
    FIELDNAME=Latte, ALIAS=LAT, USAGE=I08, ACTUAL=A08,
      MISSING=ON, $
    FIELDNAME=Mug, ALIAS=MUG, USAGE=I08, ACTUAL=A08,
      MISSING=ON, $
    FIELDNAME=Scone, ALIAS=SCO, USAGE=I08, ACTUAL=A08,
      MISSING=ON, $
    FIELDNAME=Thermos, ALIAS=THER, USAGE=I08, ACTUAL=A08,
      MISSING=ON, $

The following procedure creates the table GGORA based on the FOCUS data source GGSALES (with MISSING=ON attributes added to the DOLLARS field in the Master File):

APP HOLDMETA baseapp
APP HOLDDATA baseapp
SET HOLDMISS = ON
SET HOLDMISS = ON
SET ASNAMES = ON
TABLE FILE GGSALES
SUM DOLLARS AS ''
BY CATEGORY
ACROSS PRODUCT
WHERE PRODUCT NE 'Coffee Grinder' OR 'Coffee Pot'
ON TABLE HOLD AS GGFLAT FORMAT ALPHA
END

FILEDEF GGFLAT DISK baseapp/ggflat.ftm
CREATE FILE GGORA
MODIFY FILE GGORA
FIXFORM FROM GGFLAT
DATA ON GGFLAT
END

The following TABLE request calls the SQL function COALESCE:

SET TRACEUSER = ON
SET TRACESTAMP = OFF
SET TRACEON = STMTRACE//CLIENT

DEFINE FILE GGORA
VALUE/I8 MISSING ON = SQL.COALESCE(Biscotti, Capuccino, Croissant, Espresso, Latte);
END
TABLE FILE GGORA
PRINT Biscotti Capuccino Croissant Espresso Latte VALUE
BY CATEGORY
ON TABLE SET PAGE NOPAGE
END

The trace output shows that the SQL function call was passed to the RDBMS:

SELECT
COALESCE(T1."BIS",T1."CAP",T1."CROI",T1."ESP",T1."LAT"),
T1."CAT",
T1."BIS",
T1."CAP",
T1."CROI",
T1."ESP",
T1."LAT"
FROM
GGORA T1
ORDER BY
T1."CAT";

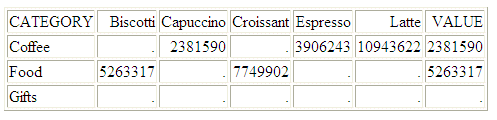

The output is:
